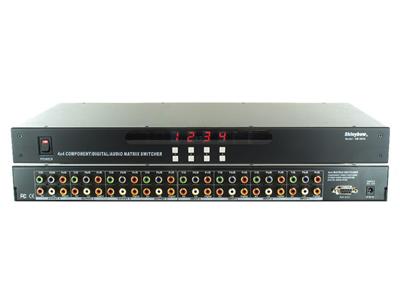

4x4 Component Matrix Switch 4 inputs and 4 outputs with audio, RS232 and Infra Red Remote 1U Rackmount

Description :

This AB-5644, 4x4 Component Video Matrix Switch with Digital/Analog/Optical Audio is designed to work as a switcher for multiple AV sources and displays. It has four component AV inputs and four outputs. Any of the inputs can be routed to any of the outputs or the same input can be routed to all the outputs. This 4x4 component matrix switch has a maximum bandwidth of 325MHz and supports resolutions up to 1080p. It completely eliminates the need to constantly move around Video input and output cables. The RS232 control option allows the component Matrix switcher to be controlled by a computerized system such as HTPC. The AB-5644, 4x4 Component Matrix Switcher unit is useful for routing signals from AV source devices like VCRs, camcorders, Video Game Consoles, Video CDs, DVDs, Satellite receivers, CATV Set top boxes to AV destination devices like VCRs, DVD-Rs, TV Sets, and Video projectors. You can use KVMEP-132 Serial RS232 to ethernet TCP/IP converter to access the Video matrix switch remotely.


Item Number: #AB-5644
Price: $0.00
Sale Price: $0.00

Availability: outofstock


Product Features


  • Switches component Video and Digital/Analog audio between multiple sources and displays.
  • Allows connection of 4 sources and 4 displays
  • Supports resolutions up to 1080p
  • Installs in seconds



4 Inputs
Component/Digital/St Audio
4 Outputs
Component/Digital/St Audio
480P, 576P,720P,1080i/P(1125i/P)
Manual, IR and RS
232 Control
Video Bandwidth
Video Distortion
< 1.2db
Audio Distortion
< 0.6db
Channel Isolation
> 50db
S/N Ratio
> 50db
Use IR Remote
Controller (Frequency 38KHz)
RS232 PC control
(DRV for Win98/2000/XP)
Power Consumed
