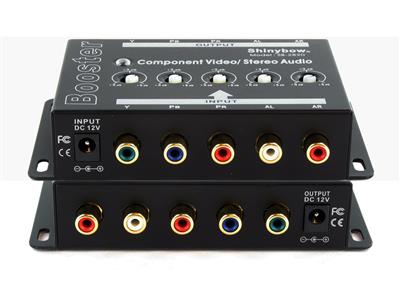

Shinybow SB-2810 Component Video with Audio Booster

Description :

The SB-2810 is an S-video or Composite Video and Stereo Audio Amplifier (booster) used to drive signals over a long distance. This product provides signal amplifier from +0db to +6db via an adjustable control. This is useful for distributing signals from any video source, included higher resolution video source to a display monitor. You can use the S-Video AND Composite Video simultaneously. Video signals can be distributed up to more than 300~1000 ft away. Perfect for Classrooms, Training, Conference Halls, Retail outlets. It works great at high resolutions.

Item Number: #SB-2810

Price: $0.00

Sale Price: $0.00

Availability: outofstock

Quantity:

Add to Cart

description

Product Features

Adjustable gain control separate for both S-Video, Composite Video, and Audio also.
Surface mount taps provided.

Specifications

Input	S-Video (Y/C) or Composite Video at 1 Vpp/75 ohm and Stereo Audio (AR/AL) signals
Output	S-Video (Y/C) or Composite Video at 1 Vpp/75 ohm and Stereo Audio (AR/AL) signals
Video Bandwidth	440MHz, G=+2, 320Mhz, G=+10
Setting time	10ns to 0.1%, 2V Step, G =+2
Low Distortion (SFDR) Third Order lntercept(3IP)	-66 dBc @ 20MHz, Second Harmonic -75 dBc @ 20MHz, Third Harmonic 26 dBm @ 70MHz, G=+10
Gain Flatness	0.1dB to 75 Mhz
Differential Gain Error	0.01%, Rl=150%
Differential Phase Error	0.01%, Rl=150%
Size(L,W,H)	4.09 in x2.83 in x1.00 in (104mm x 72mm x 25mm)
Power Consumed	100mA Maximum
Power Source	DC 12 Volts, @500mA.
