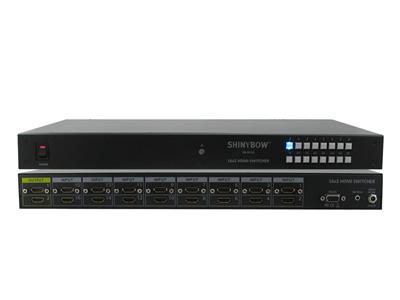

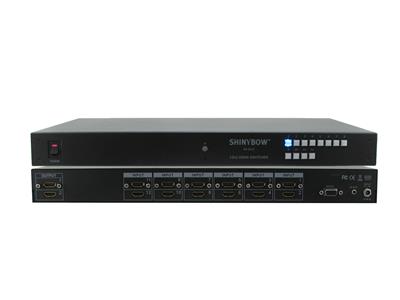

- (12) HDMI digital source devices matrix switched to (2) HDMI devices
- HDMI digital video w/ embedded audio, DVI format and CEC/HDCP 2.0 compliant
- Link speeds of up to 3.75Gbps (link clock rate of 225MbHz). Supports HDMI 1.4a 3D formats
- Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p
- Compatible with all HDMI source devices, PC monitors, Plasma HD display, HDTV and audio receivers/amplifiers
- Digital Video TMDS formats for resolutions up to 1080p-60 with Deep color 36-bit
- Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
- Various User Interface Control:
- Windows based GUI control via RS-232 (RS-232 interface 2000/XP/WIN7-32/WIN7-64/WIN8)
- Front panel push button
- IR wireless remote control
- Third party RS-232 controller (via simple ASCII)
- Automatic scanning output status via LED show on front panel
- Simultaneously supports output #2 via output #1
- Support IR Remote and IR Extender with distance up to ~1000 feet (300M) Maximum
Specifications
|
Type of Switcher
|
(12) HDMI Inputs to (2) HDMI Outputs Routing Switcher |
|
HDMI Support
|
HD 1080p@60Hz, H36-bit Deep color, 3D (1.4a) formats
|
|
HDCP/CEC Support
|
HDCP 2.0 Compliant, CEC Compliant
|
|
Video Bandwidth
|
Double Data Rates: 225Mhz, Total 3.75Gbps bandwidth
|
|
Digital Video Support
|
Full HD Resolution: 480i/480p/720p/1080i/1080p
|
|
Digital Audio Support
|
Multi Audio Formats 5.1/7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Controls
|
- IR Remote Controller
- IR External port (OD 3.5mm Ear phone Jack)
- Select & function buttons on front panel
- RS-232 series interface
|
|
Double Output
|
Supports Output #2 port simultaneously via Output #1
|
|
Infrared Frequency
|
38Khz
|
|
IR External Distance
|
~1000 ft/300M maximum
|
|
HDMI I/O Connector
|
HDMI type A - SMD 19pin female type
|
|
Temperature
|
32°F-100°F Operation (0°C-38°C)
|
|
Size (WxDxH)
|
17.5 x 10 x 1.75 in
|
|
Rack Mount
|
Rack Mount 1RU high 19in rack mount (with rack mount)
|
|
Power Supply
|
DC12V/3A, Universal world wide type 50/60Hz, 100~230VAC
|
|
Power Consumption
|
1750mA Maximum
|
|
Safety Approvals
|
CE, FCC, RoHS (2002/95/EC)
|
|
Weight
|
6.8 lb (Unit only) / 9.5 lb (Net)
|
|
