7x2 Multi Format HDMI Video Scaler Selector Switch with VGA and HDMI outputs

( 76 Reviews )

#AB-3879

$899.00 $634.00

Description :

KVMSwitchtech's AB-3879 is a Professional High performance Video Graphics scaler Supporting Seven (7) different inputs and output signal types; HDMI, VGA and S/PDIF & Stereo Audio. The Inputs are comprised of 1x Composite Video & Audio, 1x S-Video & Audio, 1x Component Video & Audio, 1x VGA & Audio, 1x DVI & Audio, 1x Display port and 1x HDMI. The available Output ports are 1x HDMI, 1xVGA, 1x S/PDIF and 1x Stereo Audio. Support S-Video with 3D comb filter, HDMI 3D 1.4a formats, HDCP 2.0 Compliant, HDCP support DVI/HDMI/Display Port. Video input signal Auto-Detects the video standard format from NTSC/PAL/SECAM system. Support high definition RGB digital HD signal. The scaler support s full HDTV resolution data rates enabling 480i/p, 576i/P, 720p or 1080i/p formats, Higher DVI resolution (1920x1200 ), HDMI 1080p-60, DP (2550x1600) is ideally suit for high Definition 3D TV, HDTV, Plasma display or Monitor applications. Control is provided via Front Panel buttons with LED readout , RS-232, Ethernet, or IR remote control (included). An RS232 interface is provided for interfacing with third party controller. A windows-based control software package is included to provide completely control of the AB-3879 from a PC.

Add to Cart

Product Features

HDMI Video Scaler support HDMI 1.4a 3D formats, HDMI V1.4 transmitter and Receiver, HDMI 1.4, DVI 1.0, HDCP 2.0 compliant
Wide Range scales HD resolutions any PC (XGA to WUXGA) and HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i and 1080p from Any analog video, S-Video (Y/C), Component Video (YPBPR), PC VGA, DVI, HDMI or Display Port resolutions
Input Port Composite Video, S-Video (Y/C), Component Video (YPBPR) 480i/p, 576i/p, 720p, 1080i/p, DVI (1920x1200), HDMI 1080p-60, Display Port (2560x1600)
Output Support PC VGA (XGA to WUXGA) and HDMI 1080P-60 with deep color 36-bit., Digital Audio support SPDIF and Stereo Audio outputs
Input Resolution up to 1080p, 1920x1080, 1920x1200 and 2560x1600 (only in DP)
Bypass XGA and 720P 120Hz 3D signal for DLP link 3D ready projector for active 3D display and Audio receivers/amplifiers
Advanced 3D de-interlace, smooth edge algorithm and 3x2 / 2x2 film mode processing
Support 3D formats: Frame packing, side by side and top/bottom signal types
Support full HD @24Hz full HD 3D signal with special algorithm for RH/LH synchronization
Support intelligent color adjustment (Discrete RGB color adjustment, hue, saturation, sharpness, contrast, brightness and (4) preset color modes)
OSD (on screen display) for menu color, resolution and input source selections
Various User Interface control:
- Windows based GUI control via RS-232 port
- Front Panel push button
- IR wireless remote control
- Ethernet with built-in web browser
- Third party RS-232 controller (via simple ASCII)
Support IR Remote and IR Extender with cable distance up to ~ 1000 ft (300M) Max
Desktop with optional 19 inch Rack mount (included)
Power Supply DC12 Volt, universal Type switch 100~240VAC, 50/50Hz

Specifications

Type of Scaler	HDMI High Quality Video scaler.
HDMI Compliant	HDMI 1.4a Compliant receiver and output transmitter, DVI 2.0
HDCP Supports	DVI/HDMI/DisplayPort Compliant with HDCP 2.0 specification
Video Inputs	Composite/S-Video(y/c)/Component(YPbPr)/VGA/DVI/HDMI/DP
Audio Inputs	SPDIF, Digital Audio (PCM) and Stereo Audio
Video Outputs	1x RGB, 1x HDMI
Audio Outputs	1x S/PDIF digital audio, 1x Analog audio RH/LH, HDMI audio
Input Resolution	Up to 1080p-60, 1920x1200 and 2560x1600 (only in DP)
Output Resolution	Up to 1080p-60 and 1920x1200
Controls	IR EXT, Select buttons on the front panel & RS-232
3D Supports	3D Video format in HDMI 1.4a (225MHz)
Output Timing	480i, 480p, XGA@60, 480P, 720P-60, 1080P-60, XGA@50, 576P, 720P@50, 1080P@50, UXGA@60, UXGA@50, WXGA@60, WXGA@50, XGA@60, XGA@50, 1400x1500@50, 1400x1500@60, 1920x1200@60, 1280x800@60, SVGA@60, 1280x800@50, 1080p@24, 720p@120, 720p@100, XGA@120
HDMI Cable Distance	49 ft (15 M) Maximum depending on the cable quality.
Infrared Frequency	38KHz
IR Extender Distance	IR Extender with cable distance up to ~1000 ft (300M) max
Safety Approvals:	CE, FCC, RoHS (2002/95/EC)
Dimensions (LxWxH)	11.96 x 5.90 x 1.73 in (304 x 150 x 11mm)
Power Supply	Input 100~240VAC, 50/60Hz, output 12VDC, 10A
Shipping Weight	2.05 Kgs / 3.42 lbs

View User Manual

Sam Smith - General Dynamics –

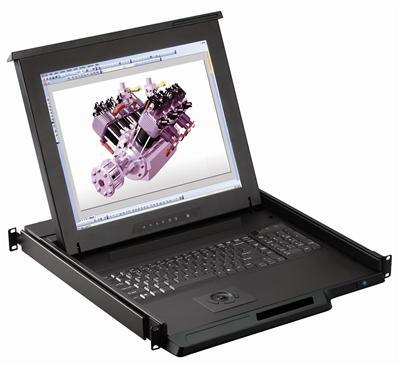

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
