Component Matrix Switch Buyer's Guide: Independent YPbPr HDTV Routing

A component matrix switch routes component (YPbPr) video and stereo audio from multiple sources to multiple displays independently, combining a component splitter and switch in one device. It supports HDTV resolutions up to 1080p with non-blocking access, instantaneous switching, and no video degradation. KVMSwitchTech stocks component matrices in 4x2, 4x4, 6x4, 8x2, 8x8, and 16x16 configurations, all with CE, FCC, and RoHS certification.

Rackmount Monitors Rackmount KVM Switches CAT5 Extenders Video Matrix Switches Rackmount LCDs Cables Video Splitters Video Converters

Browse products

Key features

  • HDTV up to 1080p – clean YPbPr routing with high bandwidth and no degradation.
  • Independent, non-blocking – any source to any output, or one source to all, with instant switching.
  • Control – front-panel buttons, RS-232, IR remote, and TCP/IP.

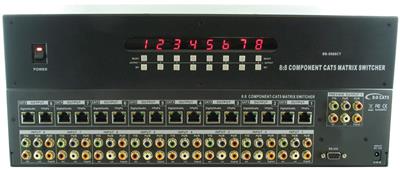

  • Long-distance option – Super Matrix Cat5 component models for extended runs.

Where it fits

Bars, restaurants, digital signage, command and control centers, sports venues, point of sale, and shopping centers. For SD sources use a composite matrix switch; for modern digital displays use an HDMI matrix switch.

Frequently Asked Questions

What is a component matrix switch?

It routes component (YPbPr) video and stereo audio from multiple sources to multiple displays independently, acting as both a splitter and switch in one unit.

What resolution does a component matrix support?

HDTV resolutions up to 1080p with non-blocking access and no video degradation.

What sizes are available?

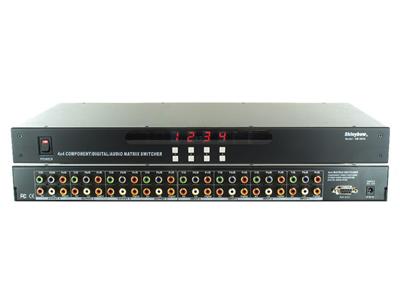

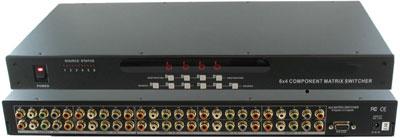

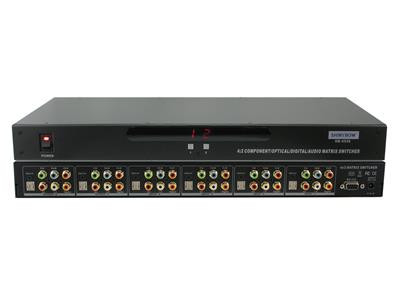

4x2, 4x4, 6x4, 8x2, 8x8, and 16x16 configurations, with custom designs on request.

How is a component matrix controlled?

Front-panel push buttons, RS-232, IR remote, and TCP/IP control.

Routing component HDTV across a venue? Our engineers help match port count, resolution, control, and distance to your deployment. Call (216) 798-7530 for a free system design.
