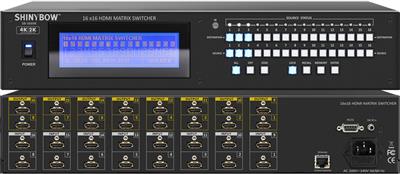

16x16 HDMI Matrix

A 16x16 HDMI matrix routes any of 16 HDMI sources to any of 16 displays at the same time. Each output can choose its own input. The products here are HDMI 16-in/16-out chassis; other sizes are on the HDMI matrix switch range. Call (216) 798-7530 with port count, 4K timing, HDCP requirements, and cable length.

What a 16x16 HDMI matrix is

A 16-input, 16-output HDMI router lets output 7 stay on source 2 while output 12 switches to source 15. Front-panel, RS-232, IR, and TCP/IP control vary by model; check the individual SKU sheet. Direct HDMI copper suits short in-room runs, with reliable length depending on resolution and cable quality. Only a model whose sheet states 3840×2160 at 60 Hz should be specified for 4K60; do not infer it from a general 4K label.

If you needChoose
In-room HDMI routing and EDID controlHDMI 16x16 model with the timing and EDID options on its sheet
Displays up to 330 ft awayCat5e/Cat6 HDBaseT HDMI matrix with the required receivers; those models are not in this grid
Unattended or remote controlModel with documented TCP/IP (RJ45) and RS-232 control

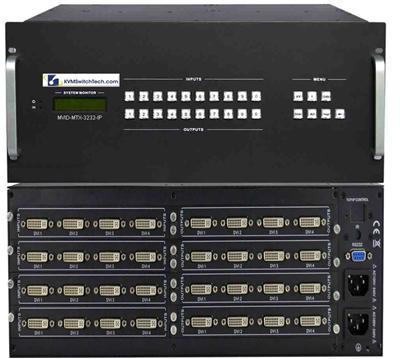

DVI sources rather than HDMIDVI matrix switch
Eight or four HDMI inputs and outputs8x8 HDMI matrix switch or 4x4 HDMI matrix switch

When you do not need a 16x16 HDMI matrix

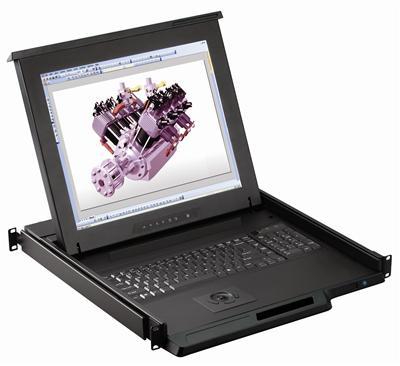

One source feeding many displays calls for an HDMI splitter, not independent matrix routing. For server video plus keyboard and mouse, use a rackmount KVM switch. For a legacy VGA source, confirm the conversion path before specifying new hardware.

Browse products

RFQ checklist

  1. Exact I/O: 16 HDMI inputs and 16 HDMI outputs
  2. Video timing: 1080p60, 4K30, or 4K60 only when the SKU sheet confirms it
  3. HDCP version required by protected sources and displays
  4. Control: front panel, RS-232, IR, or TCP/IP
  5. Cable length: direct HDMI copper or a separate HDBaseT system
  6. Audio: embedded HDMI or a model with a documented breakout

For volume and government pricing, call (216) 798-7530.

Frequently Asked Questions

What is a 16x16 HDMI matrix?

It is a router with 16 HDMI inputs and 16 HDMI outputs, letting any source reach any display independently.

Is every 16x16 HDMI matrix 4K60?

No. Specify 4K60 only when that SKU's sheet lists 3840×2160 at 60 Hz. Other models may be 4K30-class or 1080p60.

Can I use a DVI 16x16 for HDMI sources?

DVI matrices are listed separately under DVI matrix switch. Match the source, display, audio, and HDCP requirements before selecting an adapter.

How far can a 16x16 send HDMI?

Direct HDMI is suited to short runs; the usable length depends on cable quality and video timing. For up to 330 ft at supported resolutions, compare a separate HDBaseT matrix and its paired receivers.

Does it replace a KVM switch?

No. An HDMI matrix routes video and audio, not keyboard and mouse. Use a rackmount KVM switch for server control.

Confirm input and output format, resolution, control, and run length before ordering. Call (216) 798-7530.
