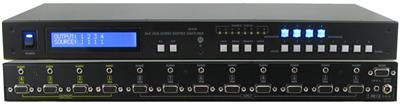

HDR8x8S 8x8 HDMI Matrix Router

$3299.00 $2646.00

Description :

This HDR8x8S HDMI Matrix router enables users to switch HDMI Video and digital audio from any Eight HDMI sources to eight HD displays. This HDR8x8S is a combination of HDMI Switch and HDMI Splitter. Any input can be displayed on any of the outputs or the same input can be displayed on all the outputs. This Video Matrix Switch is used for Digital Signage, commercial, and home theaters applications.

Recently Added: 8x8 HDMI Matrix

HDR8x8S 8x8 HDMI Matrix Router


Product Features


  • Switches 8 HDMI inputs with 8 HDMI outputs
  • Sources can be routed independently to displays
  • Switching Controlled via the front panel, RS232, IR, USB and Optional TCP/IP
  • Supports High definition video resolutions of 480p, 720p, 1080i and 1080p
  • Supports 7.1 Digital Surround Sound Audio
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Outputs HDMI up to 40 feet with standard HDMI cables
  • Rack-Mountable



HDTV Resolutions
480p, 720p, 1080i, 1080p
TV Resolution
Input Interface
(8) HDMI Type A 19-pin Female TMDS
Output Interface
(8) HDMI Type A 19-pin Female TMDS
Input Cable Length
Up to 40 ft.
Output Cable Length
Up to 40 ft.
Limited 1 Year Parts and Labor
Panel, RS-232, IR, USB and TCP/IP
Internal 100-240 VAC
19”W x 5.25”H (3U) x 7”D
10 lbs.
HDR8X8 Approvals
FCC, CE, RoHS Compliant
Power Supply Approvals
Operating Temperature
0 to +40° C (+32° to 104° F)
Operating Humidity
10% to 85% (Non-condensing)
Storage Temperature
-20° to +60° (+20° to +140° F)
Storage Humidity
10% to 85% (Non-condensing)
