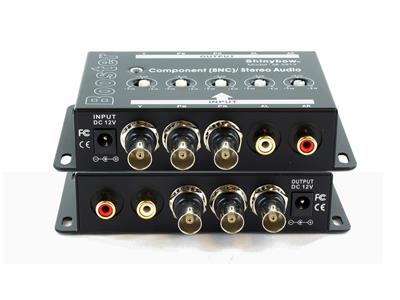

Shinybow SB-2819 1 to 1 Component Video/Stereo Audio Booster(BNC connector)


$299.00 $199.00

Description :

The SB-2819 is an Component Video and Stereo Audio Amplifier (booster) used to drive signals over a long distance. This product provides signal amplifier from +0db to +6db via an adjustable control. This is useful for distributing signals from any video source, included higher resolution video source to a display monitor. Video signals can be distributed up to more than 300~1000 ft away. Perfect for Classrooms, Training, Conference Halls, Retail outlets. It works great at high resolutions.




Product Features



  • Supports 1 to 1 Component Video and Audio
  • Adjustable gain control separate for Component Video and Audio.
  • Surface mount taps provided.


Specifications

Input
Component Video (YPbPr/ or YCbCr or RGB) 1Vpp 75 ohm and Stereo Audio (AR/AL) signals
Output
Component Video (YPbPr/ or YCbCr or RGB) 1Vpp 75 ohm and Stereo Audio (AR/AL) signals
Video Bandwidth
440MHz
Setting time
10ns to 0.1%, 2V Step, G =+2
Gain Flatness
0.1dB to 75 Mhz
Differential Gain Error
0.01%, Rl=150%
Differential Phase Error
0.01%, Rl=150%
Size(L,W,H)
4.09 in x2.83 in x1.00 in (104mm x 72mm x 25mm)
Power Consumed
250mA Maximum
Power Source
DC 12 Volts, @500mA.
