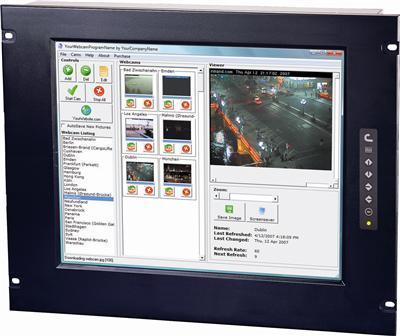

10.4" Rackmount LCD Monitor with VGA and DVI-D Interface and 3.5mm Stereo Audio

( 79 Reviews )

$1200.00 $825.00

Description :

This 10.4" Rackmount LCD monitor with VGA and DVI-D video interface and 3.5mm stereo audio allows users to capture and monitor data. These Rack Mount LCD monitors come with industrial grade LCD which provides users crisp and clear image. These LCDs are a cost effective solution and save you valuable Rack space. Rackmount LCD units support simple plug and play functionality.

Add to Cart

Product Features

10.4” TFT LCD display (1024 x 768 resolution) in 5U (8.75”) of Rack space.
ARGB (Analog RGB VGA 15PIN ) and DVI-D signal inputs (Optional S-Video/Composite Video inputs)
Housed in rugged steel construction with a black powder coat finish
VGA Cable, AC/DC adapter and power cord included
Lexan™ Screen protection available (L) (Optional)

Specifications

Dimensions	19.0" (W) x 8.75" (H) x 2.40" (D).
Weight	10 lbs
Power	110 - 240 VAC, 50/60 Hz. 60 watts max
On-Screen Controls	Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Input Select Color Temp., Reset.
Plug & Play	DDC1 and DDC2B
Temperature	Operating: 0C to 50C Storage: -20C to 60C
Humidity(Operating)	10 to 90% RH (max)
Input Signal (VGA)	RGB Analog Video, TTL H & V sync
Input Signal (Digital)	DVI-D Single Link (TDMS)
Input Connectors	Analog: 15 pin mini D-Sub Digital: 24 pin DVI-D
Colors Available	Black
Audio	Input - 3.5mm Stereo / Output - 24 watts
Display area	10.4” Diagonal
Colors Displayed	262K Colors
Contrast Ratio	500:1 typ
Brightness	350 cd/m2 typ
Viewing Angle	Horizontal: 178 Vertical: 178
Response Time	40ms Typ
Resolution	VGA up to 1024 x 768
Horizontal Frequency	31.5 to 80KHz.
Vertical Frequency	56 to 75 Hz.
Screen Protection(Optional)	Lexan™

View User Manual
