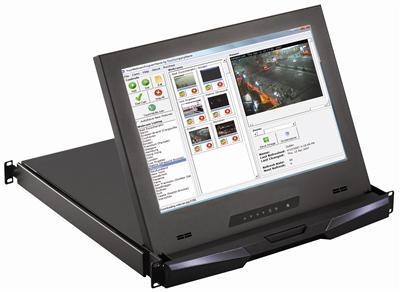

1U 17" Ultra High Resolution 1920 x 1200 Rackmount LCD Monitor with DVI-D and VGA Connectors

Description :

1U 17" Ultra High Resolution 1920x1200 Rackmount LCD, RKMTL-1U-17-UN also referred to as 1U LCD is a flip up monitor in 1U Drawer. This Rack lcd unit saves space for your Rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This 1920X1200 TFT Rackmount LCD Monitor allows for viewing and monitoring of data even through closed glass doors. 1U rack mount LCD Monitor units come with an industrial grade LCD panel.

Item Number: #RKMTL-1U-17-UN

Price: $2400.00

Sale Price: $1999.00

Availability: instock

Quantity:

Add to Cart

description User Manual

Product Features

1U Rackmount 17" Widescreen LCD
1920 x 1200 Native WUXGA Ultra High resolution
Support full HD with 1080p resolution
Green LED-backlit panel technology
1.07 Billion true colors, 10-bit
Built-in DVI-D and VGA Connectors
HDMI / Audio / 3G / HD / SD-SDI Broadcast-grade input (Optional)
17" Touchscreen : Capacitive, Resistive (Optional)
48V, 24V or 12VDC input (Optional)
MIL-Type or lockable connector (Optional)

Specifications

LCD Panel
Size (diagonal)	17.1" TFT
Max resolution	1920 x 1200
Brightness (cd/m2)	210
Backlight	LED
Colors	1.07 Billion, 10-bit
Contrast ratio (typ)	600 : 1
Viewing Angle (H/V)	130° x 110°
Active area (mm)	367 x 230
MTBF (hrs)	20,000
Signal input	DVI-D / VGA
Environmental
Operating	0 to 50°C Degree
Storage	-5 to 60°C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G Acceleration ( 11 ms duration )
Vibration	5~500Hz 1G RMS Random Vibration
Casing Color	Black front panel ( RAL 9005 ) Dark grey rear case ( RAL 7037 )
Power
Input	Auto-Sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 48 Watt, Standby 5 Watt
Dimensions
Product	17.4 x 18.1 x 1.73 inches
Packing	27 x 23.2 x 4.7 inches
Weight
Net	26 lbs
Certifications	CE, FCC, RoHS
