32x32 HDMI Video Matrix Switch32x32 HDMI Matrix

KVMSwitchTech Part #: HDMI-MTX-3232-IP In stock

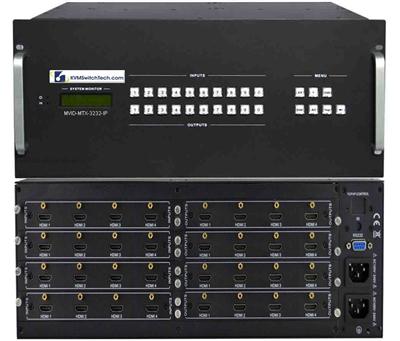

32x32 HDMI Video Matrix Switch with RS232, IR and TCP/IP Control

Name: 32x32 HDMI Video Matrix Switch with RS232, IR and TCP/IP Control
Brand: KVMSwitchTech
SKU: HDMI-MTX-3232-IP
Price: 14700.00 USD
Availability: InStock
Rating: 4.4 (157 reviews)

4.4 157 reviews

$14,700.00 $24,000.00 Save 39% ($9,300)

Volume and Government pricing available - call (216) 798-7530 or request a quote.

Description :

32x32 HDMI Video Matrix Switch with 4KX2K Support

KVMSwitchTech's HDMI-MTX-3232-IP HDMI Matrix Switcher/Router enables users to Switch HDMI video and digital audio from any 32 HDMI sources to 32 HD display units. This 32X32 HDMI Matrix, HDMI-MTX-3232-IP is a combination of HDMI Switch and HDMI Splitter. Any input can be displayed on any of the outputs or the same input can be displayed on all the outputs. This 32x32 HDMI Video Matrix Switch is used for Digital Signage, commercial, and home theaters applications.The controlling options are push buttons, RS232 Control, Infra Red Remote (IR)and TCP/IP Control

Related HDMI Cables

In stock. Ships fast

Estimated delivery: 3-6 business days

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

Flexible Universal slots for HDMI
Front panel LCD- for operation and working status
Hot Swappable with easy plug n play
Cross switching - any input to any output
Backlit button provides label which is change-able for customizing
RS232 Serial control port, using serial commands
TCP/IP control via Ethernet
Front panel security lock prevents unauthorized use when the matrix is installed in an unsecured environment
9 Global presets- to save and recall the function
5U Rack-mountable aluminum enclosure
Dual-Internal international power supply (100Volt~240Volt AC, 50/60Hz) for worldwide compatibility
Backed by 3-Year full parts & labor warranty

Specifications

Chassis Input	32 x HDMI Input Cards
Chassis Output	32 x HDMI Output Cards
Bandwidth for each input/output	340 MHz (10.2 Gbps)
Input/ output impedance	75 ohms
Switching speed	200ns (max)
Gain	0 dB
Maximum delay	5nS (+/- 1nS)
Maximum pixel clock	165 MHz
Control
Serial control port	RS-232, 9-pin female D connector
Pin Configurations	2 = TX, 3 = RX, 5 = GND
Installation	Rack Mountable
Front panel control	Buttons
Options	TCP/IP (Ethernet Controller)
General
Frame Size	5U rack chassis
Dual Internal Power Supply	110VAC ~ 240VAC, 50/60Hz
Humidity	10% ~ 90%
Temperature	-20 ~ +70 C
Power Consumption	50W
Case Dimension	W483mm x H219 x D320mm
Product Weight	8 Kg

View user manual (PDF)
