4x4 DVI Matrix Switch DVR4X4

( 28 Reviews )

#DVR4X4

$1200.00 $699.00

Description :

SmartAVI's 4x4 DVI Matrix Switch, DVR4X4 also known as DVI Matrix, routes video from multiple DVI Video sources to multiple DVI displays. DVI matrix enables users to switch and display any of the inputs to any of the outputs, or the same DVI input to all the outputs. 4x4 DVI Video Matrix Switch is a combination of DVI Switch and DVI Splitter in one unit. DVI Matrix units can be used in conjunction with DVI Splitter and DVI Extender units for long DVI extensions. We offer a wide range of DVI Router units. These units are available in 4x2, 8x4, 8x8 and 16x16 configurations.

Add to Cart

Product Features

4x4 DVI Matrix Switcher

Optional TCP/IP and telnet control
4x4 Non-blocking, single-link DVI Matrix switch
Supports DVI operation at the maximum TMDS rate of 2 x 1.65 Gb/s
Supports resolutions up to 1080p, 2K, and 1920 x 1200
Simultaneous 4x4 analog matrix switching at 380 MHz bandwidth
DVI transmission over 19 feet at the highest TMDS rate of 1.65 Gb/s
Control from either front panel or RS232
Optional IR Remote

Specifications

Video
Video Amplifier Bandwidth	165MHz
Input Video Signal	1.2 Volts p-p
Input DDC Signal	5 Volts p-p (TTL)
Single Link Range	1080p/1920 x 1200
DVI Connector	DVI-D 29 Pin female
Power
Power Supply	5VDC-2A
Control
Serial Controls	RS232, DB9 Female Connector
Mechanical
Height	1.75 in. (4.45 cm.)
Width	12 in. (30 cm.)
Depth	6.5 in. (16.5 cm.)
Weight	4.05 lbs. (1.84 kg.)

View User Manual

Sam Smith - General Dynamics –

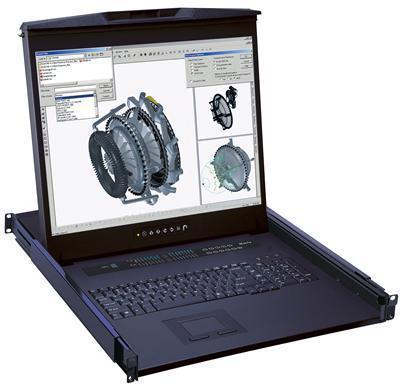

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.

Melvin Parker - L3 Communications –

KVMSwitchTech helped us with a 1080p Rackmount Console with integrated 8 Port USB KVM Switch for our CNC Machines. The product works great and the staff is very friendly. I would recommend this Company.

James Johnson- Lockheed Martin –

Knowledgeable, experienced and courteous staff. We needed Fiber Optic Extenders with EMI shielding to avoid interference in signal transfers. KVMSwitchTech worked with us to design a DVI Fiber Optic Extender customized for our application. Thanks for all your help.

Angela Russo - Panasonic –

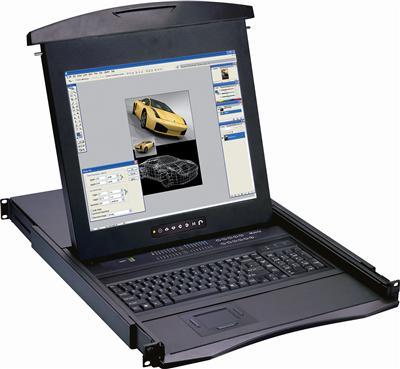

Rack LCDs for one of our newer locations were required for data monitoring. The light weight and short depth design of the Rackmount LCD Console was exactly what we were looking for. In addition, the product's streamlined and durable construction ensures its longevity and reliability in our environment. These guys are pros and know what they are doing.
