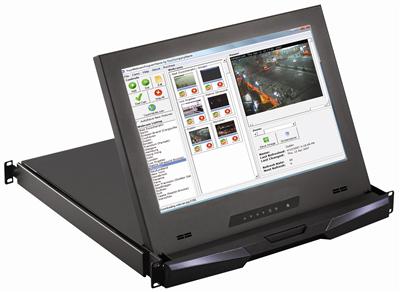

- 7U Rackmount LCD with 17" Samsung TFT Panel
- Panel button controls
- Unique Mechanical design to maximize rack mountable space
- Light weight construction and low power consumption
- Built in on screen display (OSD)
- IP65/NEMA sealed front 2mm protective glass for LCD (Optional-Sold separately)
- 12V, 24V, 48V DC Power supply options available
Specifications
|
LCD
|
Industrial Grade Samsung LCD Panel
|
|
Max Resolution
|
1280 x 1024
|
|
Brightness (cd/m²)
|
300
|
|
Color Support
|
16.7 m
|
|
Contrast Ratio (typ.)
|
1000:1
|
|
Viewing Angle (H/V)
|
160° x 160°
|
|
Display Area (mm)
|
338 x 270
|
|
Tr Response Time (ms)
|
1.3
|
|
LCD Panel MTBF (hrs)
|
50,000
|
|
Plug & Play DDC
|
EDID 1.3
|
|
Power Input
|
Auto-sensing 100 to 240VAC, 50 / 60Hz
|
|
Power Consumption
|
Max 48 Watts, Standby 5 Watts
|
|
Regulatory Approvals
|
FCC, CE
|
|
Environmental
|
|
Operation
|
0° to 50°C Degree
|
|
Storage
|
-5° to 60°C Degree
|
|
Relative Humidity
|
5-90%, Non-condensing
|
|
Shock
|
10G Acceleration (11ms duration)
|
|
Vibration
|
5-500Hz 1G RMS random vibration
|
|
Dimensions
|
|
Product (WXDXH)
|
18.9 x 2.2 x 12.2 inches
|
|
Packaging (WXDXH)
|
22.2 x 17.7 x 6.1 inches
|
|
Weight
|
|
Net
|
15 lbs
|
|
Gross
|
19 lbs Options
|
|
Additional Options
|
|
Graphic Input
|
HDMI, DVI-D, BNC, S-Video & Quad display input
|
|
DC Power
|
DC Power input with 12V, 24V, 48V selection
|
|
Touchscreen Options
|
Resistive and Capacitive (USB or Serial)
|
|
Audio
|
3.5mm audio plug
|
|
NEMA 4 / IP65
|
4mm thickness of protective glass
|
|
