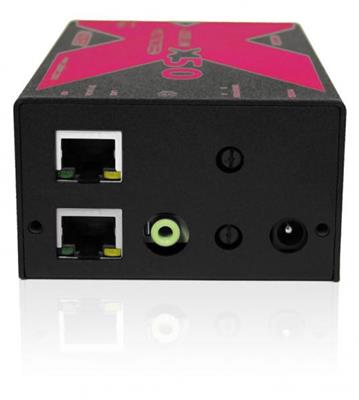

Adder X-DVIPRO-MS2-US Dual Head DVI, Audio, 4 Port USB KVM Extender to 50m


$1695.00 $1478.50

Description :

AdderLink X-DVIPRO-MS2-US MultiScreen is a high performance KVM (Keyboard, Video and Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, away from the user work station environment, whilst maintaining the same user experience. It can transmit two single Link DVI video streams, USB 2.0 and analog audio over two CATx cables.




Product Features



  • Plug and play,
  • 50 meter extension distance,
  • Dual screens at 1920 x 1200 @ 60Hz maximum resolution,
  • USB 2.0 Low and Full speed,
  • Keyboard, mouse, tablet and touch.


Specifications

Hardware compatibility
All computers with DVI-D, USB and Audio - requirement dependent.
DVI-D Interface - digital only
The system supports resolutions to a maximum of 1920 x 1200 @ 60Hz.
USB 2.0 Low and full Speed
Transparent USB 2.0 (full and low speed) that supports HID, isochronous and mass storage devices to a maximum of 50 meters. Reduce maximum cable length by 5 meters if a USB hub in connected to the receiver unit.
Audio
The system delivers analog stereo audio (Line Out).

8 channels of HDMI audio are supported with sample sizes of 16, 20 or 24 bits at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz (simultaneously with the jack audio).
Software compatibility
All known operating systems.

Computer connections Transmitter (TX)

2 x DVI-D, audio 3.5mm in, USB type B.

Computer connections Receiver (RX)

2 x DVI-D, audio 3.5mm out, USB type A x 4.

Physical design
Compact case, robust metal construction 120mm / 4.7’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1 lb.
Power

Rx: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.4A, input to power adapter, 5VDC 12.5W output from power adapter.

Tx: Powered from two USB connections.

Optional 2.5mm DC jack (power adapter not included.

Operating temperature
0 to 40ºC / 32 to 104ºF.
Approvals
CE, FCC
Important extension distance details

Recommended cables are CAT7 shielded foiled twisted pairs:

Daetwyler 7702  Flexible patch cable

Daetwyler 7120  Bulk cable



Category 5 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.

ADDITIONAL ACCESSORIES

X-RMK-FASCIA-Dual: Rack mount plate with screws included

X-RMK-CHASSIS: Rack mount chassis

VSCD11: HDMI to DVI cable
