DMS-H1616N 16X16 DVI Video Matrix Switch dvi video matrix

KVMSwitchTech Part #: DMS-H1616N In stock

DMS-H1616N 16X16 DVI Video Matrix Switch with RS232 and TCP/IP Control

Name: DMS-H1616N 16X16 DVI Video Matrix Switch with RS232 and TCP/IP Control
Brand: KVMSwitchTech
SKU: DMS-H1616N
Price: 15999.00 USD
Availability: InStock
Rating: 4.8 (183 reviews)

4.8 183 reviews

$15,999.00 $36,000.00 Save 56% ($20,001)

Volume and Government pricing available - call (216) 798-7530 or request a quote.

Description :

The DMS-H1616N DVI Video Matrix Switch system is designed to satisfy the needs of industrial grade installations. The DMS-H1616N, 16X16 DVI Matrix Switcher unit is an integrated product which has a number of independent DVI optical connectors, easy field configuration modular frame. This 16x16 DVI Matrix unit is specifically designed for switching up to 16-input DVI Signals to up to 16 output destinations. The Fiber option is used for long distance transmission (the max. distance 300m at WUXGA 1920x1200). The controlling options include the RS232 port for control of external equipment, and intuitive control TCP/IP for Web control. Please call us for complete system design and pricing details.

In stock. Ships fast

Estimated delivery: 3-6 business days

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

Supports 16 DVI-D single-link input channels and 16 DVI-D Single-link output channels
The EDID parameter of the monitor can be preset or default
Power-off status protection
Save the last operation parameters when power suddenly shut off
Input signal Monitor and indication
Output load monitor and indication
Supports RS232 control
Supports Network Control based on TCP/IP
Support WEB control
Built in signal generator for testing and debugging systems.

Specifications

DVI Input
Format	DVI single link
Number of	2 or 16 input channels
Pixel clock	Up to 165MHz
Equalization	40dB automatically
DVI Output
Format	DVI Single link
Number of	2 or 16 input channels
Pixel clock	Up to 165MHz
+5V current	500mA / DVI output via pin 14
Control
Serial	RS-232 9600 baud Rx
Network	Ethernet TCP/IP 10/100 base TX (Auto sensing)
Optical Input and Output	1 Fiber per channel
Fiber	Multimode 50/125 or 62.5/125 glass fiber
Transmission distance	1600 ft
Connector
Copper Input and Output	29 pin DVI-I female connector
Optic Card	SC
Power	IEC Power Inlet
RS-232	9p Sub D female
LAN	RJ45
General
Dimensions(including rack ears)	4U, 19” rack-mountable enclosure, 19(W) x 7(H) x 22(D) inch
Weight (with the boards all installed)	9.5kg
Power	100 to 240V AC, 50~60Hz
Compliance	UL, CE, FCC Class A, UL 60601-1, 1st Edition, 2006-04-26 (Medical Electrical Equipment, Part 1: General Requirements for Safety) ; CAN/CSA-C22.2 No. 601.1-M90, 2005 (Medical Electrical Equipment - Part 1: General Requirements for Safety)
Dimension	4U Rack mount 440W x 310D x 180H (mm) / Weight : 9500g
Environmental
Operating Temperature Range	0 to 50 degrees Centigrade
Storage Temperature Range	-20 to 70 degrees Centigrade

4.8

183 reviews

Customer reviews for this product and comparable KVMSwitchTech purchases.

Reviews for this product are being collected.

Add a review

Your name Rating

Review

Configuration Help

Need the right KVM path for your rack?

Talk with a product specialist before you buy.

Call Support

Signal Routing

Build cleaner HDMI distribution fast.

Shop matrix switches, splitters, and extenders by application.

Explore Routing

Clientele & reviews

Trusted in Enterprise & Control Rooms

Reseller program Reseller

Sam Smith - General Dynamics

5/5

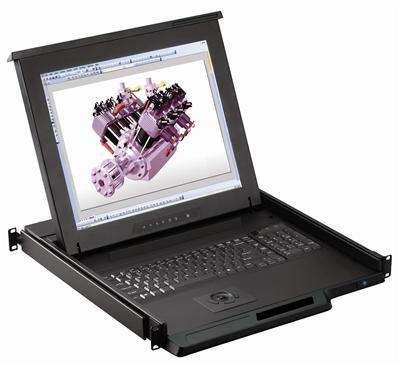

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.

Melvin Parker - L3 Communications

5/5

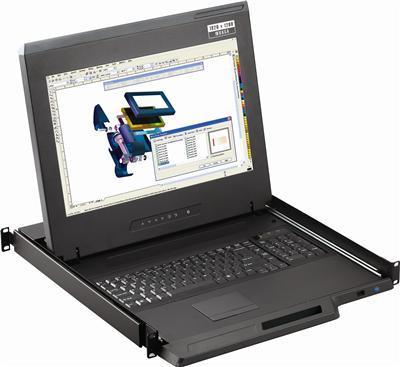

KVMSwitchTech helped us with a 1080p Rackmount Console with integrated 8 Port USB KVM Switch for our CNC Machines. The product works great and the staff is very friendly. I would recommend this Company.
