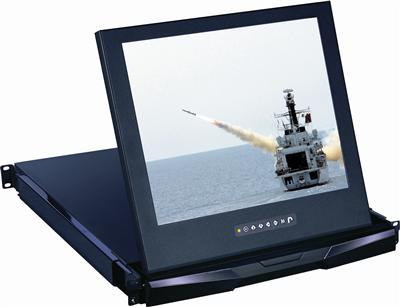

RP717-DVI Cyberview 7U 17" DVI Rackmount LCD Monitor

( 52 Reviews )

#RP717-DVI

$817.00 $711.00

Description :

Austin Hughes RP717-DVI Cyberview 7U 17" DVI Rackmount LCD TFT unit provides users with a variety of choices such as wall mounting or Rack Mounting. These DVI Rackmount LCD monitors come with industrial grade Samsung LCD which provides users with crisp and clear image. These LCDs are cost effective and save you valuable Rack space. DVI Rackmount LCD units support simple plug and play functionality.

Add to Cart

Product Features

7U DVI Rackmount LCD with 17" Samsung TFT Panel
Panel button controls
Unique Mechanical design to maximize Rack Mountable space
Light weight construction and low power consumption
Built in on screen display (OSD)
IP65/NEMA sealed front 2mm protective glass for LCD (Optional-Sold separately)
12V, 24V, 48V DC power supply options available

Specifications

LCD	Industrial Grade Samsung LCD Panel
Max Resolution	1280 x 1024
Brightness (cd/m²)	300
Color Support	16.7 m
Contrast Ratio (typ.)	1000:1
Viewing Angle (H/V)	160° x 160°
Display Area (mm)	338 x 270
Tr Response Time (ms)	1.3
LCD Panel MTBF (hrs)	50,000
Plug & Play DDC	EDID 1.3
Power Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption	Max 48 Watts, Standby 5 Watts
Regulatory Approvals	FCC, CE
Environmental
Operation	0° to 50°C Degree
Storage	-5° to 60°C Degree
Relative Humidity	5-90%, non-condensing
Shock	10G Acceleration (11ms duration)
Vibration	5-500Hz 1G RMS random vibration
Dimensions
Product (WXDXH)	18.9 x 2.2 x 12.2 inches
Packaging (WXDXH)	22.2 x 17.7 x 6.1 inches
Weight
Net	15 lbs
Gross	19 lbs Options
Additional Options
Graphic Input	HDMI, DVI-D, BNC, S-Video & Quad display input
DC Power	DC Power input with 12V, 24V, 48V selection
Touchscreen Options	Resistive and Capacitive (USB or Serial)
Audio	3.5mm audio plug
NEMA 4 / IP65	4mm thickness of protective glass

View User Manual
