1U 17" Shallow Depth Composite and S-Video Rackmount LCD Monitor Drawer

( 71 Reviews )

$1200.00 $989.00

Description :

1U 17" short depth Composite Video(Standard BNC/RCA Optional)/S-Video Rackmount LCD, also referred to as composite shallow depth 1U LCD is a flip up Monitor in 1U Drawer. This Rack LCD unit saves space for your rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This TFT Rackmount LCD monitor allows for viewing and monitoring of data even through closed glass doors. 1U rack mount LCD Monitor units come with an industrial grade LCD panel.

Add to Cart

Product Features

Composite Video(Standard BNC/RCA Optional)/S-Video
Short Depth design - 18.9 inches(480mm)
1U Rackmount LCD with 17" Samsung TFT Panel
Allows for viewing and Monitoring of data even through closed glass doors
Enhanced aesthetics with new molded front panel and two point lock
One Man Installation slides for quick and easy installation
Panel button controls
Unique mechanical design to maximize Rack Mountable space
Light weight construction
Built in on screen display (OSD)

Specifications

LCD	Industrial Grade Samsung LCD Panel
Max Resolution	1280 x 1024
Brightness (cd/m²)	300
Color Support	16.7 m
Contrast Ratio (typ.)	1000:1
Viewing Angle (H/V)	160° x 160°
Display Area (mm)	338 x 270
Tr Response Time (ms)	1.3
LCD Panel MTBF (hrs)	50,000
Plug & Play DDC	EDID 1.3
Power Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption	Max 48 Watts, Standby 5 Watts
Regulatory Approvals	FCC, CE
Environmental
Operation	0° to 50°C Degree
Storage	-5° to 60°C Degree
Relative Humidity	5-90%, non-condensing
Shock	10G Acceleration (11ms duration)
Vibration	5-500Hz 1G RMS Random vibration
Dimensions
Product (WXDXH)	17.6 x 18.9 x 1.73 inches
Packaging (WXDXH)	22.9 x 29.7 x 6.8 inches
Weight
Net	26 lbs
Gross	37 lbs
Additional Options
Graphic Input	HDMI, DVI-D, BNC, S-Video & Quad display input
DC Power	DC power input with 12V, 24V, 48V selection
Touchscreen Options	Resistive and Capacitive (USB or Serial)
Audio	3.5mm audio plug
NEMA 4 / IP65	4mm thickness of protective glass

View User Manual

Sam Smith - General Dynamics –

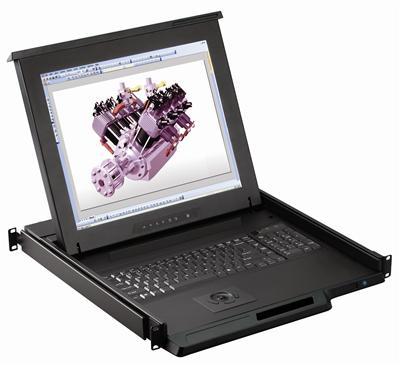

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
