1U 19" Composite and S-Video Rackmount Monitor Keyboard composite rack monitor, bnc rackmound lcd keyboard

KVMSwitchTech Part #: RKD-KVM-19-BNC In stock

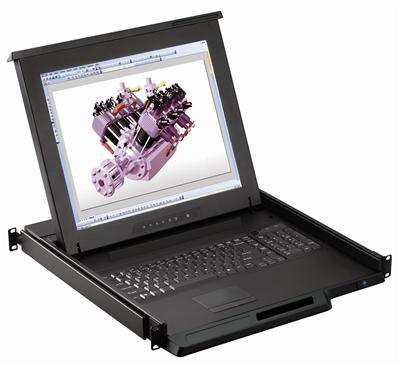

1U 19" Composite and S-Video Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad

Name: 1U 19" Composite and S-Video Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Touchpad
Brand: KVMSwitchTech
SKU: RKD-KVM-19-BNC
Price: 1399.00 USD
Availability: InStock
Rating: 4.6 (148 reviews)

4.6 148 reviews

$1,399.00 $1,800.00 Save 22% ($401)

Volume and Government pricing available - call (216) 798-7530 or request a quote.

Description :

1U 19" Composite/S-Video Rackmount Monitor Keyboard is a combination of keyboard, Composite/S-Video and touchpad mouse (KVM) in 1U Rack drawer. This Composite Rackmount LCD Drawer comes with a combo interface cable which supports both USB and PS2 Keyboard interface. This Composite LCD Keyboard unit comes with standard BNC video connector (RCA optional), VGA, and S-Video connectors.

In stock. Ships fast

Estimated delivery: 3-6 business days

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

1U Rackmount Monitor drawer with 17” or 19” LCD
Built in Keyboard, touchpad or trackball and Samsung LCD
Touchpad or Trackball keyboard with combo cable for USB or PS2 and VGA 15 Pin HD/Composite BNC(RCA Optional)/S-Video video
Multiple Keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Adjustable Mounting brackets for various rack depths
Slide rails with fixed positions to prevent drawer movement when typing
Optional mounting hardware available for two post Telco style racks

Specifications

LCD	Samsung LCD Panel
Display Area	376(H) x 301(V) mm
Contrast Ratio	1000: 1
Viewing Angle	160 °(H) x 160 °(V) (Typ.)
Resolution	1280 x 1024
LCD MTBF	50,000 Hrs
Tr Response Time (ms)	1.3
Brightness	250 cd/m2
Panel Color	16.7M
Back Light	4 CCFTs(Cold Cathode Fluorescent tube)
Video
Horizontal Sync	64 - 80 KHz (Typ.)
Vertical Sync	60-75 Hz (Typ.)
Input Signal	RGB 0.7Vp-p /Composite Video/S-Video
Power Management	VESA DPMS
Control
OSD Control	Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input ,select, Multi window, Clear EEPROM, OSD adjust, Save
Inputs
Power	100-240VAC, 50 / 60Hz with IEC Connector
Video Input	15-pin D-Sub connector/Composite Video BNC(RCA Optional)/S-Video
Dimensions
Product (WXDXH)	17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	35lbs
Gross	48lbs
Certifications	CE, FCC, and RoHS

View user manual (PDF)
