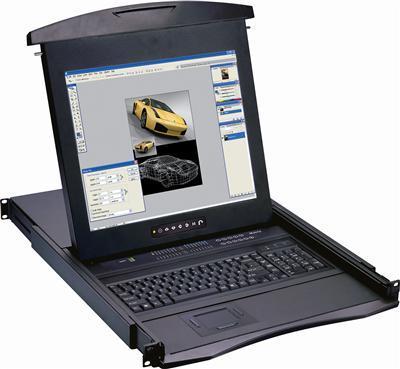

1U 19" HDMI KVM Drawer with Combo USB and PS2 Interface Touchpad


$1500.00 $1170.00


Description :

1U 19" HDMI KVM Drawer with Combo USB and PS2 Interface Touchpad, KVMDW-19-HDMI is a combination of Keyboard, HDMI Video and touchpad Mouse (KVM) in 1U Rack drawer. This HDMI KVM Drawer unit comes with a combo interface cable which supports both USB and PS2 Keyboard interface.




Product Features

  • 1U KVM Drawer with 19" LCD
  • Built in Keyboard, touchpad and Samsung LCD
  • Touchpad Keyboard with combo cable for USB or PS2 and VGA 15 Pin HD / HDMI Video
  • Multiple Keyboard language selections
  • Enhanced aesthetics with new molded front panel and two point lock
  • Adjustable Mounting brackets for various rack depths
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Optional Mounting hardware available for two post Telco style racks



Specifications

LCD
Samsung LCD Panel
Display Area
376(H) x 301(V) mm
Contrast Ratio
1000: 1
Viewing Angle
160 °(H) x 160 °(V) (Typ.)
Resolution
1280 x 1024
LCD MTBF
50,000 Hrs
Tr Response Time (ms)
1.3
Brightness
250 cd/m2
Panel Color
16.7M
Back Light
4 CCFTs(Cold Cathode Fluorescent tube)
Video
Horizontal Sync
64 - 80 KHz (Typ.)
Vertical Sync
60-75 Hz (Typ.)
Input Signal
RGB 0.7Vp-p /HDMI
Power Management
VESA DPMS
Control
OSD Control
Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input ,select, Multi window, Clear EEPROM, OSD adjust, Save
Inputs
Power
100-240VAC, 50 / 60Hz with IEC Connector
Video Input
15-pin D-Sub Connector /HDMI
Dimensions
Product (WXDXH)
17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)
23.6 x 30.3 x 7.1 inches
Weight
Net
35lbs
Gross
48lbs
Certifications
CE, FCC, and RoHS
