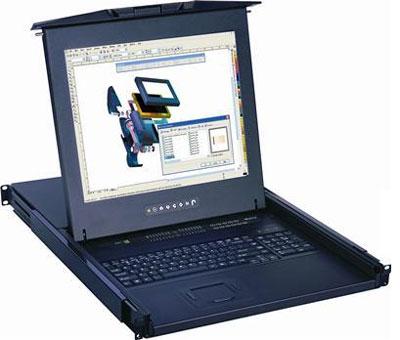

1U 19" HDMI Rackmount Monitor Keyboard with combo USB and PS2 Interface Trackball

1U 19" HDMI Rackmount Monitor Keyboard with combo USB and PS2 Interface Trackball

( 81 Reviews )

#NRKD-KVM-19b-HDMI

$1500.00 $1299.00

Description :

HDMI Rackmount Keyboard Monitor is a combination of Keyboard, HDMI Video and trackball Mouse (KVM) in 1U Rack drawer. This HDMI Rackmount Keyboard Monitor unit comes with a combo interface cable which supports both USB and PS2 Keyboard interface.

Add to Cart

Product Features

1U Rackmount Monitor drawer with 19” LCD
Built in keyboard, trackball and Samsung LCD
Trackball, Keyboard with combo cable for USB or PS2 and VGA 15 Pin HD / HDMI Video
Multiple keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Adjustable mounting brackets for various rack depths
Slide rails with fixed positions to prevent drawer movement when typing
Optional mounting hardware available for two post Telco style racks

Specifications

LCD	Samsung LCD Panel
Display Area	376(H) x 301(V) mm
Contrast Ratio	1000: 1
Viewing Angle	160 °(H) x 160 °(V) (Typ.)
Resolution	1280 x 1024
LCD MTBF	50,000 Hrs
Tr Response Time (ms)	1.3
Brightness	250 cd/m2
Panel Color	16.7M
Back Light	4 CCFTs(Cold Cathode Fluorescent tube)
Video
Horizontal Sync	64 - 80 KHz (Typ.)
Vertical Sync	60-75 Hz (Typ.)
Input Signal	RGB 0.7Vp-p /HDMI
Power Management	VESA DPMS
Control
OSD Control	Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input ,select, Multi window, Clear EEPROM, OSD adjust, Save
Inputs
Power	100-240VAC, 50 / 60Hz with IEC Connector
Video Input	15-pin D-Sub connector /HDMI
Dimensions
Product (WXDXH)	17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	35lbs
Gross	48lbs
Certifications	CE, FCC, and RoHS

View User Manual

author

Sam Smith - General Dynamics –

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
