- Combo USB/PS2 and VGA input interface with KVM cable(6FT CABLES INCLUDED-QTY 8)

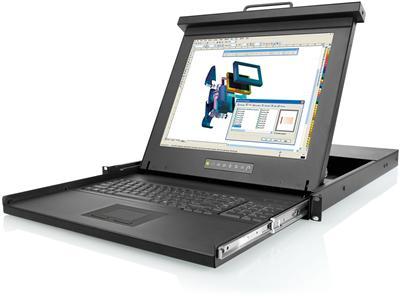

- 1U Rackmount LCD Keyboard with built in KVM Switch
- Built in Keyboard, touchpad or trackball and Samsung LCD
- Touchpad or Trackball keyboard with combo cable for USB or PS2 and VGA 15 Pin HD video
- Multiple Keyboard language selections
- Enhanced aesthetics with new molded front panel and two point lock
- Adjustable mounting brackets for various rack depths
- Slide rails with fixed positions to prevent drawer movement when typing
- Optional mounting hardware available for two post Telco style racks
- 104 key notepad Keyboard with full numerical pad
- One Man installation slides for easy, quick installation
- Multi lingual on screen display menu
- 12, 24 and 48 volt DC power options available
Rackmount KVM Drawer with KVM Switch
- Cascade KVM Switches to control up to 128 servers
- High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
- Built-in microprocessor emulation for each port boots up process
- Name servers up to 16 characters long
- Scan Mode – Monitor servers at intervals 5 to 99 seconds
- Password protection
- Multi-platform support enables users to mix PCs, SUN Microsystems, IBMs, HPs, Compaq and Dell Servers
Integrated KVM Switch Options
- PS2 KVM Switch, USB KVM Switch, Cat5e/Cat6 KVM Switch, IP KVM Switch and Matrix KVM Switch
- Mix DVI-USB, VGA-USB, VGA-PS2 Servers
- Rackmount LCD Keyboard with integrated KVM Switch offers Multi-Platform switching capability
- Cost efficient Combo KVM integration
- Secure remote user access (KVM Switch with TCP/IP Functionality)
Specifications
|
Environmental
|
|
Operating Temperature
|
0° to 50°C Degree
|
|
Storage Temperature
|
-5° to 65°C Degree
|
|
Relative Humidity
|
5-90%, non-condensing
|
|
Shock
|
10G acceleration (11ms duration)
|
|
Vibration
|
5~500Hz 1G RMS random vibration
|
|
LCD
|
Samsung LCD Panel
|
|
Diagonal Size
|
19" TFT LCD
|
|
Max. Resolution
|
1280 x 1024
|
|
Brightness (cd/m²)
|
250
|
|
Color Support
|
16.7 Mil
|
|
Contrast Ratio(Typ)
|
1000:1
|
|
Viewing Angle (H/V)
|
160° x 160°
|
|
Display Area (mm)
|
337 x 270
|
|
Tr Response Time (ms)
|
1.3
|
|
VGA Signal
|
Input Analog RGB, 0.7Vp-p
|
|
Sync. Type
|
Separate H/V, Composite, SOG
|
|
External Connection
|
|
Power Input
|
Auto sensing 100 to 240VAC, 50 / 60Hz via IEC connector
|
|
Video Input
|
VGA 15-pin connector
|
|
Dimensions
|
|
Product (WXDXH)
|
17.4 x 25.6 x 1.75 inches
|
|
Packaging (WXDXH)
|
23.6 x 30.3 x 7.1 inches
|
|
Weight
|
|
Net
|
45lbs
|
|
Gross
|
54lbs
|
|
Certifications
|
CE, FCC, & RoHS
|
|
We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
