4K Fiber Optic HDMI Extender - 3300 FT/1000M - 4K@60Hz w/ IR, RS-232, HDMI 2.0 Support

( 86 Reviews )

$1299.00 $669.00

Description :

Fiber Optic HDMI Extender extends HDMI signals up to 3300 ft/1000M (over single-mode fiber cable) or 1000 ft/300M (over multi-mode fiber cable). Video resolution supported up to 4K2K@60Hz 4:4:4. HDMI transmitter supports loop output, audio embeding and EDID managment function. Receiver supports audio extracting function. In addition, the extender supports bidirectional IR control and RS232 signal pass-through. It allows you to easily control the display device on the signal source side or control the signal source device on the display side when using this extender.

Add to Cart

Description
Reviews (5)

FEATURES

HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
Supports 18Gbps video bandwidth
Video resolution up to 4K2K@50/60Hz 4:4:4
HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Supports 3D and HDR format video, does not support CEC control
Transmission distance up to 3300 ft/1000M (over single-mode fiber cable) or 1000 ft/300M (over multi-mode fiber cable) (50/125um/OM3)
Supports bidirectional IR control, RS-232 pass-through and EDID management for simple and convenient control
Transmitter supports loop output (sharing local HD video and audio) and audio embeding function
Receiver supports audio extracting output function
Compact design for easy and flexible installation

SPECIFICATION

HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: 480i ~1080p50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz
Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth: 8/10/12-bit (1080P60Hz) / 8-bit (4K60Hz)
HDMI Audio Formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Transmission Distance: Up to 3300 ft/1000M over single-mode fiber cable / Up to 1000 ft/ 300M over multi-mode fiber cable
IR Frequency: 20KHz-60KHz
RS-232 Baud Rate: 4800-115200bps
ESD Protection Human Body Model:
- ± 8kV (air-gap discharge)
- ± 4kV (contact discharge)
Transmitter:
- Input:
  - HDMI IN [Type A 19-pin female]
  - LINE IN [3.5mm Stereo Mini-jack]
  - IR IN [3.5mm Stereo Mini-jack]
  - RS-232 [3.81mm Phoenix connector]
  - SERVICE [Micro USB, Update port]
- Output:
  - HDMI OUT [Type A 19-pin female]
  - Optical Fiber Out [LC female]
  - IR OUT [3.5mm Stereo Mini-jack]
Receiver:
- Input:
  - Optical Fiber In [LC female]
  - IR IN [3.5mm Stereo Mini-jack]
  - SERVICE [Micro USB, Update port]
- Output:
  - HDMI OUT [Type A 19-pin female]
  - RS-232 [3.81mm Phoenix connector]
  - IR OUT [3.5mm Stereo Mini-jack]
  - AUDIO OUT [3.5mm Stereo Mini-jack]
Housing: Metal Enclosure
Color: Black
Dimensions (WxDxH): 5.28 x 2.7 x .7 in (134x68x18mm)
Weight: Transmitter: 9.9 oz / 280g / Receiver: 9.8 / 278g
Power Supply: Input: AC 100 - 240V 50/60Hz / Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Operating Temperature: 0ºC~40ºC/32ºF~104ºF
Storage Temperature: −20ºC~60ºC/−4ºF~140ºF
Relative Humidity: 20~90% RH (non-condensing)
Power Consumption: Transmitter: 3.85 W (Max), Receiver: 2.7 W (Max)

INCLUDED

HDMI-FIBER-4K 18Gbps HDMI over Optical Fiber Extender (Transmitter)
HDMI-FIBER-4K 18Gbps HDMI over Optical Fiber Extender (Receiver)
IR Blaster cable (1.5M)
IR Receiver cable (1.5M)
(2) 5V/1A Power adapter
(2) 3-pin 3.81mm Phoenix connector
Users Guide

Sam Smith - General Dynamics –

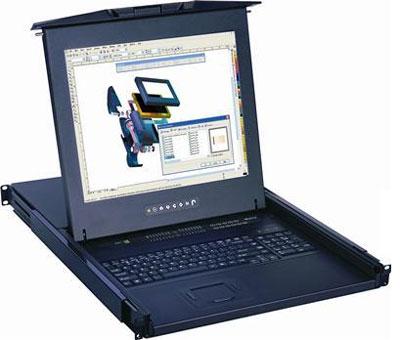

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
