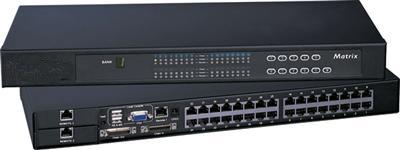

Cat5 Matrix KVM Switch over IP 1U Rackmount 3X16


#MTX-CAT6-IP-3X16
$2400.00 $2029.00

Description :

Cat5 Matrix KVM Switch over IP 1U Rackmount 3X16, MTX-CAT6-IP-3X16 enables up to three users to simultaneously access and control up to 256 Servers from multiple locations. The controlling options available are local access, remote access up to 1000ft away via Cat5/Cat5e/Cat6 cable, and TCP/IP remote access control from anywhere in the world. Rackmount IP KVM Matrix Switch offers efficient and easy system management. It is available in 16 and  32 port configurations. This KVM Matrix Switch offers multi platform capability and users can control a mix of IBM, Intel, HP, Dell, Sun, and MAC servers. The new combo cable design supports USB and PS2 server interface.




Product Features



  • Related Dongles are at the bottom of the Page- Must be purchased separately for correct functionality
  • Remote access up to 300 meters (1000ft)
  • Distance up to 40 meters (130ft) between servers and KVM Switch
  • IP Remote access via web browser
  • TCP/IP access from anywhere in the world
  • Advanced user profiles and configurable on screen display (OSD)
  • Multi lingual on screen display menu
  • Simple plug and play functionality, no additional drivers needed
  • 3x16 IP Matrix KVM Switch in 1U Form factor
  • Supports eight characters password protection
  • Cascade KVM units together to access up to 256 Servers



Specifications

Technical Specifications
KVM Switch Ports
16 x RJ45 Connectors
KVM Dongles
DVI-USB, VGA-USB and VGA-PS2 server interface up to 132 ft via Cat5e/Cat6 cables
Simultaneous Console Access
Local
1 x DB-15 VGA, 2 x USB for keyboard and mouse
Remote (1 or 2)
1 RJ45, up to 1000ft via Cat5e/Cat6 cable
IP Access (1 or 2)
1 x RJ45, 1 x DB9 Serial, 1 x USB port
IP Security
SSL v3, https, AES, CSR, RSA
Remote Receiver (1, 2 or 3)
1 x VGA, 2 x USB for keyboard/mouse, 1 KVM for connecting an extra PC
Cascading
Up to 256 servers
Compatibility
Mix PCs, MACs, SUNs, IBMs, HPs, DELL servers
OS Support
Windows Vista / 2003 / XP / 2000, Linux, Netware, UNIX
Power
100-240VAC, 50 / 60Hz 0.5A via AC/DC
Regulatory Approvals
FCC, CE
Environmental
Operating Temperature
0 to 50°C
Storage Temperature
-5 to 60°C
Relative Humidity
90%, Non-condensing
Shock
50G peak acceleration (11 ms, half-sine wave)
Vibration
58-100Hz / 0.98G (11 ms/ cycle)
Dimensions
Product (WXDXH)
Product (WXDXH)
Packaging (WXDXH)
20.1 x 15.7 x 3 inches
Weight
Net
8 lbs
Gross
18 lbs
