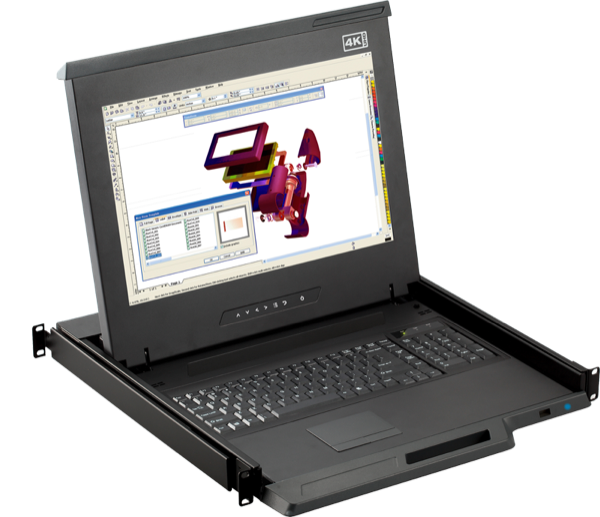

K117e-SDI Cyberview 1U 17" 4K LED Rack Mount Monitor Keyboard Console Drawer with Display Port and SDI Connectors Touchpad
$3000.00
$2373.00
K117e-SDI CyberView 1U 17" 4K LED Rackmount LCD Keyboard Console KVM Drawer is a combination Keyboard, Display Port and 3G-SDI Video connectors and touchpad Mouse (KVM) in 1U Rack drawer. This Rackmount keyboard Monitor Drawer supports simple plug and play functionality.
K117 Features and Benefits
- 1U 17" 4K LCD console drawer
- 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 video input / USB KB / MS
- 104-key keyboard with either touchpad or trackball options
- Built-in dual stereo speakers
- Short depth design of 480mm
- One Man installation design
- Enhanced aesthetics with new molded front panel
- Modular for a highly customizable rack console - integrated KVM, peripherals & more
- 6ft combo cable included
- 2-year standard warranty ( upgradable up to 5 years )
-
Optional Configurations (Call 216 798-7530 for availability)
- Front USB hub port for device access
- HDMI 2.0 (HDCP 2.2) video input
- 3G / HD / SD-SDI Broadcast-grade input
- MAC or SUN Micro keyboard options available
- DC Power: 12, 24, 48, 125 V DC
- Multiple Integrated KVM Switch option
- Additional languages supported
- Touchscreen: Resistive 1-pt, Projective 10-pt
-
K117 Package Contents
- (1) K117 Console Drawer
- (1) CP-6 6ft DisplayPort + USB console cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
Cyberview K117 Specifications
| Mechanical | |||||||
| Product Dimensions (H x W x D) |
|
||||||
| Package Dimensions (H x W x D) |
|
||||||
| Net Weight |
|
||||||
| Gross Weight |
|
||||||
| Mounting Distance |
|
||||||
| Console Ports | |||||||
| Video Input | Display port 1.2 | ||||||
| Video Option | HDMI 2.0 / HDCP 2.2 | ||||||
| KB / MS | USB type B | ||||||
| DP console 6ft cable : CP-6 | Drawer end : DP + USB type B ( KB / MS ) Server end : DP + USB type A |
||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 17.3" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160 60Hz | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 16.7 M, 8-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 89/89/89/89 | ||||||
| Response time ( ms ) | 16 | ||||||
| Dot pitch ( mm ) | 0.0.0995 | ||||||
| Display area ( mm ) | 382.12H x 214.94V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 20,000 | ||||||
| Audio Option | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Input Connector | 3.5mm stereo jack | ||||||
| Output Connector | 3.5mm stereo jack | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption (Single Console / with KVM) |
|
||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 20~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD certified | ||||||
| Environment | RoHS2 & REACH compliant |
