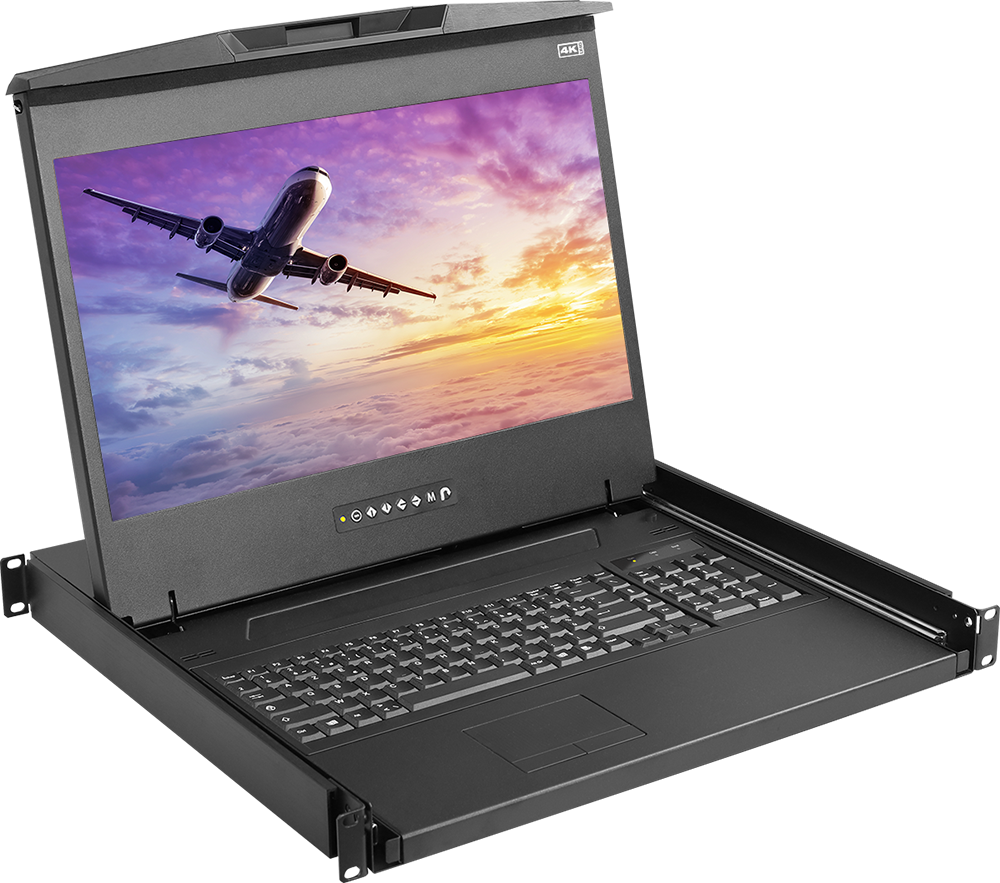

RP-K119 CyberView 1U 18.4 inch 4K LED backlit LCD Display Drawer

Name: RP-K119 CyberView 1U 18.4 inch 4K LED backlit LCD Display Drawer
Brand: Austin Hughes
SKU: RP-K119
Price: 2014.00 USD
Availability: InStock
Rating: 4.7 (141 reviews)

4.7 (141 reviews)

$2,014.00 $2,500.00 -19%

In stock — ships fast

RP-K119 CyberView 18.4″ 4K Rack Display Drawer combines high-resolution video performance with a space-saving rackmount design. Featuring an 18.4″ 4K LED-backlit LCD, it supports 4K UHD resolution up to 3840 × 2160 @ 60Hz for sharp, detailed image reproduction. Ideal for data centers, server rooms, network operations centers, broadcast facilities, and control rooms, the RP-K119 provides convenient, high-quality rack-mounted monitoring while optimizing valuable rack space.

Fast shipping
Genuine warranty
RMA support
Expert help

Features

1U 18.4" 4K LCD display drawer
3840 x 2160@60Hz native resolution/ 1.07B colors
Display port 1.2 video input
Built-in dual stereo speakers
Short depth design of 460mm
One Man installation design
Enhanced aesthetics with molded front panel and two point lock
2-year standard warranty ( upgradable up to 5 years )
TAA Compliant

Options

HDMI 2.0 video input ( HDMI )
3G / HD / SD-SDI Broadcast-grade input ( SDI )
DC power : 12V / 24V / 48V / 125V / 250V
Touchscreen : Projected Capacitive 10-pt / Resistive 1-pt

Product Specifications

Console Port

Video input

DisplayPort 1.2

Video Option

HDMI

HDMI 2.0 / HDCP 2.2

LED-backlit LCD Panel

Panel size	18.4 inch
Native resolution	3840 x 2160 @ 60Hz
Brightness	300 cd/m²
Contrast ratio	1000:1
Colors	1.07B
Viewing angle (L/R/U/D)	85/85/85/85
Response time	15 ms
Dot pitch	0.1065 mm
Display area	408.96H x 230.04V mm
Surface treatment	Anti-glare
Surface hardness	3H
MTBF	30,000 hrs

Power

Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Screen on	Max. 40W
Power saving mode	Max. 2W
Power button off	Max. 1W

Environment

Operating temperature	0 to 55°C degree
Storage temperature	-20 to 60°C degree
Operating humidity	10~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz 0.5G RMS random vibration

Compliance

EMC	FCC & CE
Safety	CE / LVD & UKCA
Environment	REACH & RoHS3 / WEEE

Physical

Product dimensions	442 x 460 x 44 mm / 17.4 x 18.1 x 1.73 inch
Packing	588 x 758 x 120 mm / 23.1 x 29.8 x 4.7 inch
Net weight	11 kg / 24.2 lb
Gross weight	15 kg / 33 lb
Mounting distance	490 ~ 720 mm / 19.3 ~ 28.3 inch

Specifications are based on the manufacturer PDF and are subject to change if options are selected or integrated into base model part codes.
