- Ultra high resolution 1600 x 1200
- Mix PS/2, USB & SUN with Multi-Platform switch capability

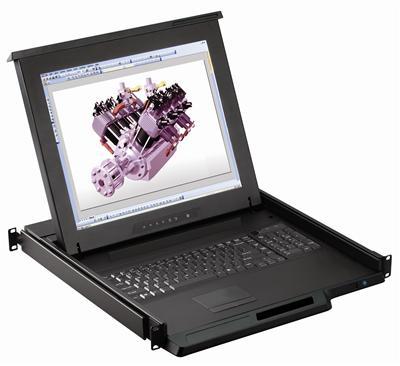

- 1U rackmount drawer with 20" LCD
- Combo interface either PS/2 or USB input to the LCD drawer
- Multiple keyboard language selections with 2 button touchpad module
- Enhanced aesthetics with new molded front panel and two point lock
- Combo Cat6 KVM with 32 ports in 1U
- Up to 40 meters between your servers & KVM ports
- IP remote access across the world wide web
- Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
- Support DVI-USB, VGA-USB & VGA-PS/2 server interface
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Dual power with failover
Specifications
Environmental
|
Operating Temperature
|
0 to 50°C / -5 to 60°C
|
Relative humidity
|
90%, non-condensing
|
Shock
|
50G peak acceleration ( 11 ms, half-sine wave )
|
Vibration
|
58~100Hz / 0.98G ( 11 ms/ cycle)
|
LCD
|
Samsung LCD Panel
|
4:3 Screen Size
|
20"
|
Display Type
|
Active Matrix TFT
|
Native Resolution
|
1600 x 1200
|
Brightness (cd/m2)
|
300
|
Contrast Ratio
|
800 : 1
|
Viewing Angle (H x V)
|
160 / 160
|
Display Color
|
16.7M
|
Response Time
|
Tr=1 / Tf=4
|
Pixel Pitch (H x V)
|
0.255 / 0.255
|
KVM Port
|
32 x RJ-15 connector
|
KVM Dongle
|
DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable
|
Console
|
Local : 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS IP Access : 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port IP Security : SSL v3, RSA, AES, CSR, http & https internet access 15-user login ( 1 x active user )
|
Expansion
|
Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers
|
Compatibility
|
Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
|
Power
|
100~240VAC, 50 / 60Hz 0.3A via IEC type cord (12V / 24V / 48V DC input option)
|
Regulatory Approval
|
FCC, CE
|
Cables Included
|
None
|
Mechanical
|
Height
|
1.73 in. (44 mm.)
|
Width
|
17.4 in. (442 mm.)
|
Depth
|
25.6 in. (650 mm.)
|
Weight
|
44 lbs. (20 kg.)
|
|
