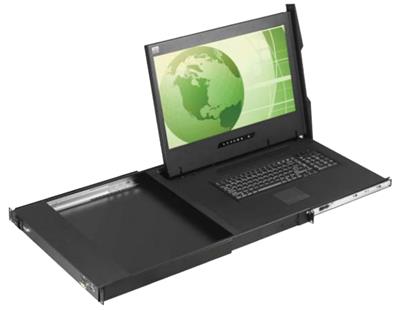

RP117 Cyberview 1U 17" Rackmount LCD Monitor Drawer


#RP117
$1099.00 $866.00


Description :

RP117 Cyberview 1U 17" Rackmount LCD, also referred to as 1U LCD is a flip up monitor in 1U Drawer. This Rack LCD unit saves space for your Rack environment. These LCDs support simple plug and play functionality and do not require any additional software. This TFT Rackmount LCD Monitor allows for viewing and Monitoring of data even through closed glass doors. 1U Rack mount lcd monitor units come with an industrial grade LCD panel.




Product Features



  • Sliding LCD allowing LCD to remain open even when the Rack door is closed
  • "One Man" installation slides for easy quick installation
  • Enhanced aesthetic with new molded front panel and two point lock
  • 1U Rackmount LCD drawer with 17" LCD ( VGA and DVI-D inputs)
  • Quad display optional
  • Touch Screen optional
  • 12V, 24V and 48V DC power options available
  • AV + BNC, Audio and HDMI options available



Specifications

LCD
Industrial Grade Samsung LCD Panel
Max Resolution
1280 x 1024
Brightness (cd/m²)
300
Color Support
16.7 m
Contrast Ratio (typ.)
1000:1
Viewing Angle (H/V)
160° x 160°
Display Area (mm)
338 x 270
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
Plug & Play DDC
EDID 1.3
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Max 48 Watts, Standby 5 Watts
Regulatory Approvals
FCC, CE
Environmental
Operation
0° to 50°c degree
Storage
-5° to 60°c degree
Relative Humidity
5-90%, non-condensing
Shock
10G Acceleration (11ms duration)
Vibration
5-500Hz 1G RMS random vibration
Dimensions
Product (WXDXH)
17.6 x 23.6 x 1.73 inches
Packaging (WXDXH)
22.9 x 29.7 x 6.8 inches
Weight

Net
26 lbs
Gross
37 lbs
Additional Options
Graphic Input
HDMI, Audio, BNC, S-Video & Quad display input
DC Power
DC power input with 12V, 24V, 48V selection
Touchscreen Options
Resistive and Capacitive (USB or Serial)
Audio
3.5mm audio plug
NEMA 4 / IP65
4mm thickness of protective glass
