Composite Matrix Switch Buyer's Guide: Route SD Video and Audio Anywhere
A composite matrix switch displays composite video and stereo audio from multiple sources on multiple displays independently. It is the workhorse for routing standard-definition AV from gaming consoles, DVD/VCR players, camcorders, satellite receivers, and CATV set-top boxes to many destinations. A true non-blocking router, it combines a composite splitter and switch in one unit. KVMSwitchTech stocks composite matrices in 4x2, 4x4, 8x2, 8x4, 8x8, and 16x16 configurations with CE, FCC, and RoHS approvals.
Browse products
Composite Matrix Switches

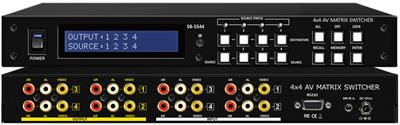

Shinybow SB-5544LCM 4x4 Composite Video/Stereo Audio Matrix Switcher
$630.00
$799.00
In stock
Composite Matrix Switches
Shinybow SB-5548LCM 8x8 Composite Video Stereo/Digital Audio Matrix Routing Switcher
$903.00
$1,199.00
In stock
Key features
- Non-blocking routing – any input to any output, or one input to all, with instant switching.
- Video + stereo audio – switch the AV pair together; multi-zone volume control on select models.
- Control – front-panel buttons, IR remote, RS-232, and TCP/IP.
- Expandable – combine with composite splitters and extenders for larger, longer-distance systems.
Where it fits
Security/CCTV monitoring, broadcast, digital signage, and legacy AV distribution. For HDTV component sources use a component matrix switch; for long Cat5 runs see the Cat5 video matrix.
Frequently Asked Questions
What is a composite matrix switch?
It routes composite (RCA/BNC) video and stereo audio from multiple sources to multiple displays independently, combining a splitter and switch in one non-blocking unit.
What sources work with a composite matrix?
Gaming consoles, DVD/VCR players, camcorders, satellite and CATV set-top boxes, and other standard-definition AV devices.
What sizes are available?
4x2, 4x4, 8x2, 8x4, 8x8, and 16x16 configurations, with custom designs available.
Does it switch audio with the video?
Yes. Composite matrices switch the video and stereo audio pair together; some models add multi-zone volume control.
Distributing SD video to many screens? Our engineers help match port count, audio zones, control, and distance to your deployment. Call (216) 798-7530 for a free system design.
