16x16 UHD 4K@60Hz HDMI Matrix Switcher w/ Smart EDID Management
$2750.00
$2495.00
The ANI-16-4K60 is a high performance HDMI Matrix Switcher. It can switch (16) HDMI HD sources to (16) HDMI HD display devices simultaneously. The OLED screen on the front panel will display the input and output port in real time. It supports a maximum resolution up to 4K60Hz YUV 4:2:0 and supports HDCP 2.2. Select smart EDID management via a PC with the Web GUI. Control provided by on-panel buttons, IR remote control, RS-232, LAN, and Web GUI. This product has a 3 year warranty.
FEATURES
- HDMI 2.0b (4K60Hz YUV 4:2:0), HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports resolution up to 4K2K@50/60Hz (YUV 4:2:0) for all HDMI ports
- Supports pass-through audio up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio
- Supports HDR-10 and Dolby Vision
- Supports smart EDID management
- Supports on-panel button, IR remote control, RS-232, LAN and Web GUI control
- Supports power off remember function
- 1U rack mounted design with metal enclosure
SPECIFICATION
- Inputs: (16) HDMI Type A [19-pin female] / LAN [RJ45, Control] / RS-232 [9-pin D-sub, Control]
- Outputs: (16) HDMI Type A [19-pin female] / OLED display screen
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2 and HDCP 1.4
- Video Bandwidth: 10.2Gbps
- Video Resolutions: 4K2K@50/60Hz YUV4:2:0, 4K2K@30Hz YCbCr / YUV 4:4:4, 1080p@60Hz YCbCr4:4:4 / 4:2:2
- Color Depth: 8/10/12bit (1080p60Hz, YCbCr4:4:4) 8bit (4K60Hz, YUV 4:2:0)
- Color Space: YCbCr 4:4:4 / 4:2:2, YUV4:2:0
- HDMI Audio Formats: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio
- ESD Protection Human Body Model:
- ± 8kV (air-gap discharge)
- ± 4kV (contact discharge)
- Housing: Metal Enclosure
- Color: Black
- Dimensions (WxDxH): 19 x 12 x 1.75 in (440x303x44.5mm)
- Weight: 9.25 lb / 4.2 Kg
- Power Supply: 100~240VAC 50/60Hz
- Power Consumption: 31.3W
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
INCLUDED
- ANI-16-4K60 16x16 HDMI Matrix Switcher
- IR Remote Control
- Phoenix Connector
- 100~240VAC 50/60Hz Power Cable
- Users Guide
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

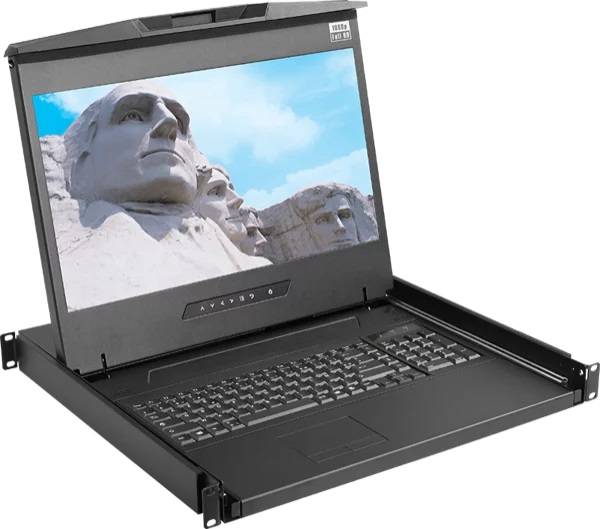

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
KVMSwitchTech helped us with a 1080p Rackmount Console with integrated 8 Port USB KVM Switch for our CNC Machines. The product works great and the staff is very friendly. I would recommend this Company.

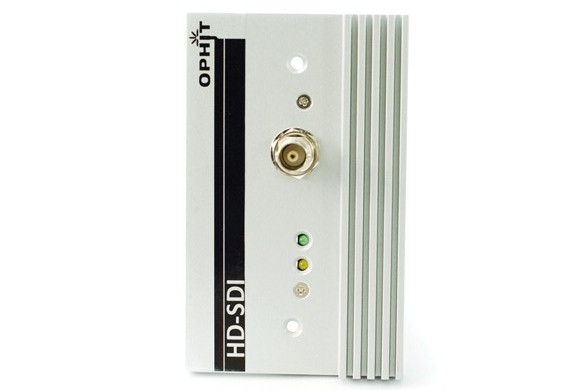

Knowledgeable, experienced and courteous staff. We needed Fiber Optic Extenders with EMI shielding to avoid interference in signal transfers. KVMSwitchTech worked with us to design a DVI Fiber Optic Extender customized for our application. Thanks for all your help.

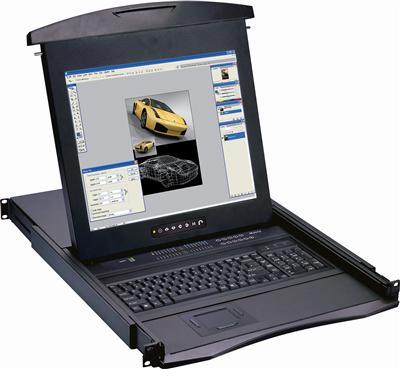

Rack LCDs for one of our newer locations were required for data monitoring. The light weight and short depth design of the Rackmount LCD Console was exactly what we were looking for. In addition, the product's streamlined and durable construction ensures its longevity and reliability in our environment. These guys are pros and know what they are doing.
