Shinybow SB-5669K 16x16 UHD 4K2K HDMI Matrix Routing Switcher w/ Full EDID Management/Learning


#SB-5669K
$12999.00 $8999.00


Description :

The Shinybow SB-5669K is professional 16x16 matrix routing switch. Supporting (16) HDMI Inputs and (16) HDMI outputs. The SB-5669K is based on the HDMI standard and supports full resolution HDMI video with embedded HDCP, RS-232 and bi-directional IR, all over a single HDMI cable. With a signal bandwidth of 340Mhz, there is no signal degradation. High definition digital signals can be selected and distributed to any of the (16) Inputs to the (16) Outputs. The SB-5669K is certified as being fully CEC and HDCP 1.3 compliant with HDMI 1.4a, HDMI 4K2K@30Hz, DVI 1.0 and 3D formats and a wide frequency range of 25MHz~340MHz. Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD display. EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

The SB-5669K’s front panel includes a large LCD display which shows the current routing cross points of all Inputs to Outputs and it allows for easy setup of EDID modes. Functional manual control is achieved through push buttons located on the front panel. External functional control is achieved through RS-232 Serial connection, IR Remote Control or IP. The RS-232/IP connection allows functions to be controlled by systems like Control4® (drivers included) or any computerized software/hardware control system. The IP (Ethernet) port supports commands from a device when using either our provided PC GUI software or thru 3rd party emulator to an IP address set in the SB-5669K. The IP port does not have a built in web-sever.

When using the SB-5669K Matrix Routing Switch, one-to-many or many-to-one connections can be established. You can easily connect any input device to any output device. You can also establish a single input device to many output devices, eliminating the need to constantly re-route video input and output cables.




Product Features



  • Enables switching of (16) HDMI digital source devices to (16) HDMI devices
  • Supports HDMI 4K2K@30Hz and 1.4a 3D formats
  • HDMI digital video w/ embedded audio, DVI format and is CEC/HDCP 1.3 compliant
  • (7) function buttons for control and (7) worldwide EDID modes for full HDMI 4K2K@30Hz HD Video resolutions
  • Link speeds of up to 6.75 Gbps (link clock rate of 340Mb Hz)
  • Wide frequency range 25MHz ~ 340MHz
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K@30Hz
  • Compatible with all HDMI source devices, PC monitors, plasma HD displays, HDTVs and audio receiver/amplifiers
  • Digital video TMDS formats for resolutions up to 1080p-60 with deep color 36-bit
  • Digital Audio Supports: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
  • Various user interface controls:
    • Windows-based GUI control via RS-232 interface control drive for 2000/XP/WIN7-32/WIN7-64/WIN8
    • Front panel push buttons
    • IR wireless remote control
    • Third party RS-232 controller (via simple ASCII)
    • ETHERNET series interface (via pc protocol commands)
  • Supports (7) world wide control function keys:
    • Full function front panel controls : ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
  • Support EDID Modes :
    • Embedded EDID Modes: FSS (Fast Speed Start ) / H24-3D/ H24-3D-M/ H36-3D/ H36-3D-M/ 4K2K-3D / DVI-D 1920x1200-60Hz
    • Learning mode 1 & 2 (learning destination EDID link to source device)
  • Automatic scanning of input & output status and display via LCM front panel
  • Using the build-in booster, each HDMI Output port is capable of driving cable lengths for 1080p up to 98 ft (30M) & 4K2K up to 49 ft (15M)
  • Supports IR remote and IR extender with a maximum distance of up to ~ 984 feet (300M)
  • Universal power adaptor AC100V~AC240V, 50/60Hz


Specifications

Type of HDMI Switcher
(16) HDMI Inputs to (16) HDMI Outputs matrix switcher
HDMI Support
HD 1080p@60Hz, 4K2K@30Hz, H36-bit deep color, 3D (1.4a) formats
HDCP / CEC Support
HDCP 1.3 & CEC Compliant
Video Bandwidth
Double Data Rates: 340MHz, total 6.7Gbps bandwidth
Digital Video Support
HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K@30Hz up to 36bit deep color
Inputs (HDMI)
(16) HDMI (HDMI or DVI digital source)
Outputs (HDMI)
(16) HDMI (To Destination)
Digital Audio Support
Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Booster (Each HDMI Output port)
*1080p up to ~98 feet (30M) & 4K2K@30Hz up to ~49 feet (15M)
Switcher Controls
  • Select & Function buttons on front panel (Data status via LCM panel show out)
  • IR Remote Controller (switch control) (SW-5669)
  • IR External port (switch control via 3.5mm OD Jack)
  • RS-232 series interface (switch control)
  • Ethernet series interface (switch control)
Source Status

Input status LEDs indicates presence of a live signal
(39) Function Control Keys
1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination 1 thru 16, 9. Source 1 thru 16
(7) EDID Management Modes
  • Embedded EDID Modes: Mode1: Fast Speed Start®, Mode2: H24-3D, Mode3: H24-3D-M, Mode4: H36-3D, Mode5: H36-3D-M, Mode6: 4K2K-3D, PCM-2CH, Mode7: DVI-D 1920x1200
  • Learning Mode:
    • 1. Select LEARNING Mode-1 : Learning single Destination EDID To Link Source
    • 2. Select LEARNING Mode-2 : Learning multiple Destination EDID To Link Source
Infrared Frequency
38 Khz
IR Extend Distance
SB-100 (~984 ft / 300M maximum), SB-100C (~6.5 ft/2M)
HDBaseT™ Extender Distance:
~328 ft / 100M maximum
HDMI I/O Connector
HDMI Type A - SMD 19pin Female Type
Temperature
Operating Temperature 32°F - 100°F (0°C - 32°C)
Dimensions (LxWxH)
17.3 x 11.81 x 3.5 in (442x300x88mm)
Rack Mount
2RU High 19” rack mount (with rack mount ears) #2U-440L
Power Supply
AC 100~240 VAC 50/60Hz (120V/1A/120W; 220V/0.54A/120W)
Unit material
Metal (thin 1mm)
Safety Approvals
CE, FCC, REACH
Product Weight
4.575 Kgs / 10.45 lb
author
Sam Smith - General Dynamics

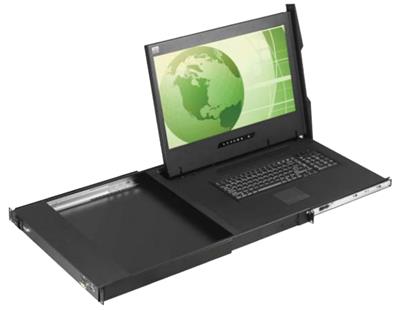

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.
