MRK-F17b-2R Cyberview 2U 17" Dual Display Center and Right VGA cyberview MRK-F17b-2R, austin hughes

Austin Hughes Part #: MRK-F17b-2R In stock

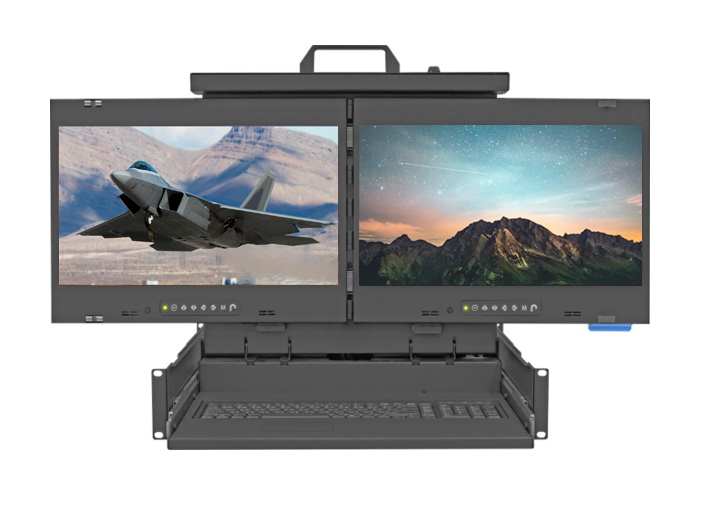

MRK-F17b-2R Cyberview 2U 17" Dual Display Center and Right VGA and DVI-D 1080p High Resolution Rackmount Monitor Keyboard Console Drawer Trackball

Name: MRK-F17b-2R Cyberview 2U 17" Dual Display Center and Right VGA and DVI-D 1080p High Resolution Rackmount Monitor Keyboard Console Drawer Trackball
Brand: Austin Hughes
SKU: MRK-F17b-2R
Price: 4188.00 USD
Availability: InStock
Rating: 4.9 (97 reviews)

4.9 97 reviews

$4,188.00 $4,800.00 Save 13% ($612)

Volume and Government pricing available - call (216) 798-7530 or request a quote.

Description :

Austin Hughes Cyberview MRK-F17b-2R 2U 17" Dual Display 1080p right hinged mount High Resolution 1920 x 1080 VGA and DVI-D Rackmount Monitor Keyboard Console Drawer is a combination of Keyboard, VGA and DVI-D Video and trackball Mouse (KVM) in 2U Rack drawer. This 1080p Rackmount LCD Keyboard comes with a combo interface cable which supports both USB and PS2 Keyboard interface. MRK-F17b-2R units are specifically designed for Command and Control Centers for side by side display applications.To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the MRK-F17b-2R console drawer is meticulously constructed by our team of experts in our own CNC facilities for such applications.

In stock. Ships fast

Estimated delivery: 3-6 business days

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

Cyberview MRK-F17b-2R 2U 17" widescreen LCD console drawer with VGA and DVI-D inputs per display
Rugged construction for mobility & durability
Fits 24" ~ 36" rack via adjustable mounting brackets
Five LED backlit display selections (WUXGA, FHD 60Hz, FHD 144Hz, 4:3 )
104-key Keyboard with Trackball
2-Year standard warranty (upgradable up to 5 years)
HDMI with Speakers (Optional)
3G / HD / SD-SDI Broadcast-grade input (Optional)
Front USB hub port for device access (Optional)
48V, 24V or 12VDC input (Optional)
Sunlight Readable LCD for 17" FHD & 19” 4:3 (Optional)

Specifications

LCD Panel
Size (diagonal)	17.3" TFT
Max resolution	1920 x 1080
Brightness (cd/m2)	300
Backlight	LED
Colors	16.7 M, 8-bit
Contrast ratio (typ)	1000 : 1
Viewing angle (L/R/U/D H/V)	89/89/89/89
Display area (mm)	381.888H x 214.812V
MTBF (hrs)	50,000
Signal input	VGA and DVI-D (HDMI Optional)
Environmental
Operating	0 to 55°C Degree
Storage	-20 to 60°C Degree
Relative humidity	5~90%, Non-condensing
Shock	10G acceleration (11 ms duration )
Vibration	10~300Hz 0.5G RMS random vibration
Operating Altitude / Non Operating Altitude	16,000ft / 40,000ft
Power
Input	Auto-Sensing 100 to 240VAC, 50 / 60Hz
Consumption	Max. 38 Watt, Standby 5 Watt
Dimensions
Product	17.4 x 21.7 x 3.5 inch
Packing	22.8 x 26.9 x 7.8 inch
Weight
Net	46.2 lbs
Certifications	CE, FCC, RoHS2, Reach Compliant
