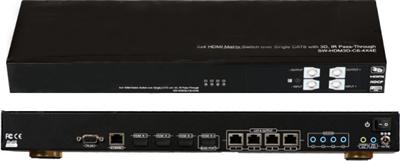

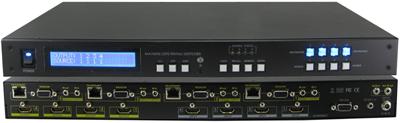

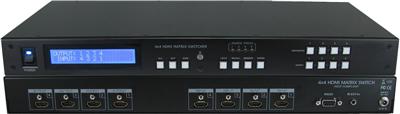

4x4 Cat5e/6/7 HDMI Matrix Switch with HDBaseT over Single Cat5e/6/7 Cable


#HDMI-44-HDB
$3600.00 $2100.00


Description :

KVMSwitchTech’s HDMI-44-HDB is High-performance 4x4 Cat5 HDMI Matrix HDBaseT Switcher with four (4) HDMI inputs and supports simultaneously four (4) HDMI and four (4) CAT5e/6/7 outputs. The HDMI-44-HDB, 4x4 cat5 hdmi matrix Switcher is based on HDBaseT technology and that supports HDMI Video with embedded Audio, RS-232, IR bi-directional, and Ethernet all over a single Cat5e/6/7 cable. With a Signal bandwidth of 340Mhz, there is no signal degradation. High definition digital Signals can be selected and distributed to any 8 outputs simultaneously. The HDMI Matrix Switcher is certified as being fully CEC and HDCP 2.0 compliant, HDMI V1.4a 3D formats, data rates up to 6.75 Gbps. It supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD displays. The HDMI-44-HDB has one CAT5e/CAT6 and HDMI connector for each output, effectively making this an 4x8 Video Matrix Switch (same signal on both outputs). One cat RJ45 Connection for each output extends the HDMI signal to remote location via HDBaseT Cat5e/6/7 HDMI Receivers (Cat6/7 Cable 330 Feet (100M), Cat5e 200 Feet (75M), Cat5 100 Feet (35M). The EDID can be selected between seven (7) different modes. This Cat5 4X4 HDMI Matrix HDBase-T Router can be controlled with front panel push buttons, IR remote or via RS232. An RS232 Windows GUI interface is provided for matrix routing. Zone control with 4 independent remote controls provide easy channel selection based on independent remotes. For example: Remote #2 controls only Video on Output number 2. It also includes one master remote that operates all sources and destination devices.


HDBaseT HDMI receivers sold separate (Please see below).

44x4 Cat5e/6/7 HDMI Matrix Switch with HDBaseT over Single Cat5e/6/7 Cable




Product Features



  • 3D Enabled
  • 4x HDMI source devices Matrix switched to 4x HDMI and 4x CAT Extender output devices
  • Application HDBaseT IR, RS-232, Multi Audio Foramt and HD Video Signals over CAT cable
  • HDMI Digital Video w/embedded Audio, DVI format and CEC/HDCP 2.0 compliant
  • Worldwide control EDID modes for HD Video resolutions
  • Link Speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 1.4a 3D formats
  • Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p
  • Compatible with all HDMI source devices, PC monitors, Plasma HD display, HDTV and audio receivers/amplifiers
  • Digital Video TMDS formats resolution up to 1080P-60 with deep color 36-bit
  • Digital Audio Support:
    • Dolby TrueHD
    • Dolby Digital
    • Dolby Digital Plug/ex
    • DTS
    • DTS-HD
    • DTS-HD Master
    • DTS-EX
    • PCM
    • PCM2
    • LPCM2
  • Various User Interface control:
    • Windows based GUI control via RS-232 port
    • Front Panel push button
    • IR Wireless remote control
    • Third party RS-232 controller (via simple ASCII)
  • Support World Wide control functions: ALL/OFF/RECALL/ENTER/MEMORY/EDID/LOCK
  • Support EDID Modes:
    • Internal Modes : AUTO/1080P-2CH/1080P-5.1/1080P-7.1/1080i-2CH/720P-2CH
    • External Modes : Passing mode with learning function
  • Automatic Scanning input & output status via LED show on front panel
  • Support IR Remote and IR Extender with distance up to ~ 1000' (300M) Maximum
  • EDID configuration via Internal modes
  • Consumer electronic control (CEC) switch all open or OFF


Specifications

Signals Supported
4x HDMI inputs To 4x HDMI and 4x CAT5e/6/7 Outputs Matrix Switcher
HDMI Support
HD 1080P-@60Hz, H36-bit Deep color, 3D of HDMI V1.4a formats
HDCP / CEC Support
HDCP 2.0 Compliant, CEC Compliant
Video Bandwidth
Double Data Rates: 340Mhz, Total 6.75Gbps bandwidth
Digital Video Support
HD:480i/ 480p/ 720p/ 1080i/ 1080p up to 36bit deep color
Inputs
  • 4x HDMI Sources
  • 1x IR Ext. in (IR To Switcher)
  • 4x IRs (To 4x Rooms - Via HDBaseT)
  • 1x ALL IR in (IR to Room - Via HDBaseT)
  • 1x RS-232 (Command Switcher)
  • 4x RS-232 (To 8x Rooms - Via HDBaseT)
Outputs
  • 4x HDMI Destinations
  • 4x CAT5e/6/7 (Via HDBaseT)
  • 1x ALL IR out (IR from Room - via HDBaseT)
  • 4x IRs (From 4x Rooms - Via HDBaseT)
  • 4x RS-232 (From 8x Rooms - Via HDBaseT)
Controls
  • IR Remote Controller (remote switcher)
  • 4x IR Room Remote Controller
  • IR External port x 1 (OD 3.5mm Ear phone Jack)
  • Select & Function buttons on front panel
  • RS-232 series interface
Source Status
Automatically Scan Sources Inputs via LED show out
Function Control Key
ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID
Infrared Frequency
38KHz
IR External Distance:
~1000 feet / 300 Meters maximum
CAT5e/6 Extender Distance
~300 feet / 100 Meters maximum
HDMI I/O Connector
HDMI Type A - SMD 19pin Female Type
Temperature
Operating temperature 32°F - 100°F (0°C - 32°C)
Dimensions (LxWxH)
19 x 9.85 x 1.75 in (482mm x 250mm x 44mm)
Rack Mount
1RU High 19 ”Rack Mount #1U-440L (with rack mount)
Power Supply:
DC 5A, POWER VAC 100V~240V, 50/60Hz
Power Consumption
5A Maximum
Safety Approvals
CE, FCC, RoHS (2002/95/EC)
Product Weight
3.75 Kgs / 6.25 lb
