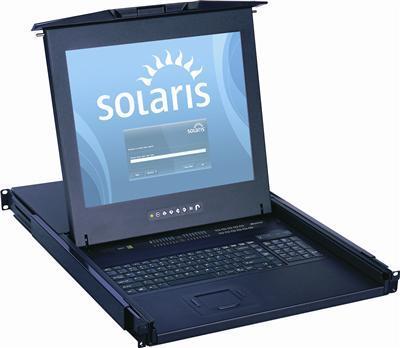

S117-S801e Cyberview 1U 17" Solaris Rackmount Monitor Keyboard Drawer with 8 Port USB KVM Switch Touchpad

Description :

S117-S801e Cyberview Solaris 1U 17" Rackmount Monitor with USB KVM Switch is a combination of USB Keyboard, Video and touchpad Mouse (KVM) in 1U drawer. This S117-S801e Solaris Rackmount LCD keyboard drawer with KVM switch is a cost effective solution and supports native sun resolution 1152 x 900. These SUN Rackmount Keyboard LCD units are used for a wide range of government, military, surveillance and commercial applications.



Item Number: #S117-S801e

Item Number: #S117-S801e
Price: $1800.00
Sale Price: $1488.00

Availability: instock

Quantity:

Product Features



  • Solaris Rackmount Monitor with integrated 8 Port USB KVM switch in 1U
  • Cost efficient Combo KVM integration
  • Direct support for SUN Micro 1152 x 900 native resolution
  • "One Man" installation slides for easy quick installation
  • Mix PS/2 USB & SUN with Multi-Platform switch capability
  • Secure Remote user access across the world wide web
  • 1U Rackmount drawer with 17"  LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • SUN Key support including Stop, Cut, Paste, Compose etc
  • US and UK keyboard language selections with either touchpad or trackball
  • Slide rails with fixed positions to prevent drawer movement when trying
  • Enhanced aesthetic with new molded front panel and two point lock


Specifications

LCD
17" Samsung Rackmount Monitor
Resolution
1152 x 900 (Direct)/1280 x 1024 (Native)
Brightness (cd/m²)
300
Color Support
16.2 Mil
Contrast Ratio(Typ)
700:1
Viewing Angle (H/V)
150° x 135°
Display Area (mm)
337 x 270
Tr Response Time (ms)
2
Resolution
640 x 350, 70Hz, 720 x 400, 70Hz, 640 x 480, 60 / 72 / 75Hz,

800 x 600, 60 / 70 / 72 / 75Hz, 1024 x 768, 60 / 70 / 72/ 75Hz,

1152 x 864, 60 / 70 /75Hz, 1152 x 900, 66 / 76Hz, 1280 x 1024, 60 / 70 /75Hz
Plug & Play DDC
EDID 1.3
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Max 40Watts, Standby 5 Watts
Environmental
Operation
0° to 50°C Degree
Storage
-5° to 65°C Degree
Relative Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random vibration
Dimensions
Product (WXDXH)
17.4 x 25.6 x 1.75 inches
Packaging (WXDXH)
23.6 x 30.3 x 7.1 inches
Weight
Net/Gross
33lbs/46lbs
Certifications
FCC, CE, and ROHS
