Shinybow SB-5669CK 16x16 HDMI & HDBaseT™ UHD 4K2K Matrix Routing Switch w/ Full EDID Management/Learning

Name: Shinybow SB-5669CK 16x16 HDMI & HDBaseT™ UHD 4K2K Matrix Routing Switch w/ Full EDID Management/Learning
Brand: Shinybow
SKU: SB-5669CK
Rating: 4.3 (218 reviews)

4.3 218 reviews

Description :

The Shinybow SB-5669CK is professional 16x16 matrix routing switch. Supporting (16) HDMI Inputs and (16) HDMI Outputs & (16) HDBaseT™ Outputs. The SB-5669CK is based on HDBaseT™ standards and supports full resolution HDMI video with embedded HDCP, RS-232 and bi-directional IR, all over a single CAT6/6a/7 category cable. With a signal bandwidth of 340Mhz, there is no signal degradation. High Definition Digital signals can be selected and distributed to any (16) Inputs to (32) Outputs simultaneously (channel outputs mirrored). The switcher is certified as being fully CEC and HDCP 2.0 compliant with HDMI V1.4a, 4K2K, 3D formats and data rates up to 6.75 Gbps. Using the build-in booster, each HDMI output port is capable of driving cable lengths for 1080p up to 98 feet (30M) & 4K2K up to 66 feet (20M). Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD displays. The SB-5669CK has (16) HDMI connector Inputs and (16) HDBaseT™ & (16) HDMI output, effectively making this an (16) in x (32) out switcher (same signal on both outputs). Using the HDBaseT™ output remote transmitter allows you to connect a source in a remote location. Likewise, the HDBaseT™ output and our HDBaseT™ receiver allows you to connect a display in a remote location. EDID management can be selected between (7) different modes and control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Call for pricing and availability

Our team can confirm lead time, configuration, and volume pricing for this product.

Call (216) 798-7530

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

Enables switching of (16) HDMI digital source devices to (16) HDMI devices and (16) HDBaseT™ Transmitter outputs to (32) destinations
New IR Matrix Source Routing Control
HDBaseT™ specification with Bi-Directional IR, RS-232, Multi Audio Format and HD video signals over single CATx (6/6a/7) category cable
HDMI digital video w/ embedded HDCP, DVI format and CEC/HDCP 2.0 compliant
Worldwide EDID control modes for HDMI full 4K2K HD video resolutions
Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Supports HDMI 1.4a , 4K2K & 3D formats
Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTV and audio receivers or audio amplifiers
Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
Digital audio support digital multi-channel audio: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX PCM, PCM2, LPCM2
HDBaseT™ supported with IR Remote and RS-232 signals over a single CATx (6/6a/7) category cable
Various User Interface controls:
- Windows based GUI control via RS-232 port
- Front panel push button
- IR wireless remote controller
- Ethernet switch control (via PC protocol commands)
- Third party RS-232 controller (via simple ASCII)
Supports (7) world wide control function keys:
- Full function front panel controls: ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
- Support EDID Modes:
  - a. Embedded EDID modes: FSS (fast speed start)/ H24-3D/ H24-3D-M/ H36-3D/ H36-3D-M/ 4K2K-3D / DVI-D 1920x1200-60Hz
  - b. External Modes: Learning mode (learning destination EDID link to source device)
Automatic scanning input & output status via LCM showout on front panel
Using the build-in booster, each HDMI output port is capable of driving cable lengths of 1080p up to 98 ft (30M) & 4K2K up to 66 ft (20M)
Supports IR remotes and IR extenders for distances up to ~ 984 ft (300M) Maximum
Supports Universal power adaptor AC100V~AC240V, 50/60Hz

Specifications

Type of HDMI Switcher	(16) HDMI Inputs to (16) HDMI & (16) HDBaseT™ Outputs Matrix Switcher
HDMI Support	HDMI 4K2K, 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats
HDBaseT™ Support	HDMI digital signals, bi-directional IR and RS-232 over single CATx (6/6a/7) cable
HDCP/CEC Support	HDCP 1.3 Compliant, CEC Compliant
Video Bandwidth	Double Data Rates: 340 MHz, total 6.75 Gbps bandwidth
Digital Video Support	HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color
Inputs: HDMI	(16) HDMI (HDMI or DVI digital source)
Outputs	HDMI: (16) HDMI (to Destination) HDBaseT™: (16) HDBaseT™ Transmitters via single category cable using RJ-45 connectors
HDMI Digital Multi-Channel Audio Support	Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Booster (HDMI Output Each)	*1080p up to ~98 ft (30M) & 4K2K up to ~66 ft (20M)
HDBaseT™ Control	IR Control: 16x IR in (Sends IR signals to 16x rooms via a HDBaseT™ Transmitter) 1x ALL IR in (Sends IR signals to 16x rooms via a HDBaseT™ Transmitter) 16x IR out (Links IR signals to a Receive from 16x rooms via a HDBaseT™ Extender) 1x ALL IR out (Links IR signals to a Receive from 16x rooms via a HDBaseT™ Extender) RS-232 I/O Control: 16x RS-232 I/O (RS-232 controls 16x rooms via a HDBaseT™ Extender Tx)
Switcher Controls	1x Select & Function buttons on front panel (Data status via LCM panel show out) 1x IR Remote Controller (switch control), p/n: SW-HD69CK 16x IR Room Remote Controller (switch control), p/n: SW-HD69CK01~16 1x IR External port (switch control via 3.5mm OD Jack) 1x RS-232 series interface (switch control) 1x Ethernet series interface (switch control)
Source Status	Input status LEDs indicates presence of a live signal
(39) Function Control Key	ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID / Destination 1 thru 16 / Source 1 thru 16
(7) EDID Management	Select Embedded EDID modes: Mode1: Fast Speed Start® / Mode2: H24-3D / Mode3: H24-3D-M / Mode4: H36-3D / Mode5: H36-3D-M / Mode6: 4K2K-3D, PCM-2CH / Mode7: DVI-D 1920x1200 Learning Mode: Select LEARNING mode-1: Learning single Destination EDID to Link Source Select LEARNING mode-2: Learning multiple Destination EDID to Link Source
Infrared Frequency	38 Khz
IR Extend Distance	SB-100 (~984ft/300M maximum), SB-100C (~6.5ft/2M)
HDBaseT™ Extender Distance	~328ft / 100M maximum
HDMI I/O Connector	HDMI Type A-SMD 19-pin female type
Temperature	Operate in a place between 32°F-100°F (0°C-38°C)
Dimensions (LxWxH)	17.32 x 11.81 x 6.93 in (442x300x176 mm)
Rack Mount	4RU High 19 in Rack Mount #4U-440L (with rack mount ears)
Power Supply	AC 100~240 VAC 50/60Hz (Power Consumption:10A Maximum)
Safety Approvals	CE, FCC, REACH
Product Weight	4.575 Kgs/10.45 lb

4.3

218 reviews

Customer reviews for this product and comparable KVMSwitchTech purchases.

Reviews for this product are being collected.

Add a review

Your name Rating

Review

Configuration Help

Need the right KVM path for your rack?

Talk with a product specialist before you buy.

Call Support

Signal Routing

Build cleaner HDMI distribution fast.

Shop matrix switches, splitters, and extenders by application.

Explore Routing

Clientele & reviews

Trusted in Enterprise & Control Rooms

Reseller program Reseller

Sam Smith - General Dynamics

5/5

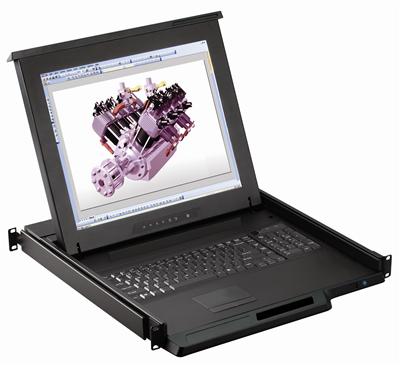

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.

Melvin Parker - L3 Communications

5/5

KVMSwitchTech helped us with a 1080p Rackmount Console with integrated 8 Port USB KVM Switch for our CNC Machines. The product works great and the staff is very friendly. I would recommend this Company.

James Johnson- Lockheed Martin

5/5

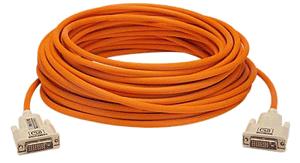

Knowledgeable, experienced and courteous staff. We needed Fiber Optic Extenders with EMI shielding to avoid interference in signal transfers. KVMSwitchTech worked with us to design a DVI Fiber Optic Extender customized for our application. Thanks for all your help.
