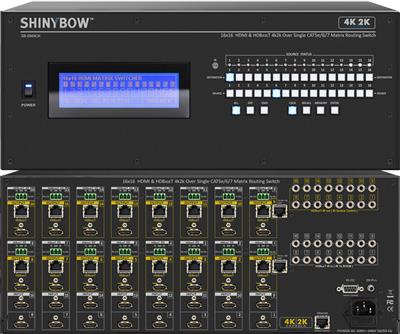

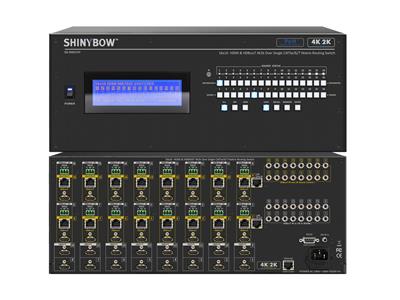

Shinybow SB-5669CKP 16x16 4K2K / PoE / HDMI & HDBaseT™ - UHD 4K2K Matrix Routing Switch w/ Full EDID Management/Learning

Name: Shinybow SB-5669CKP 16x16 4K2K / PoE / HDMI & HDBaseT™ - UHD 4K2K Matrix Routing Switch w/ Full EDID Management/Learning
Brand: KVMSwitchTech
SKU: SB-5669CKP
Rating: 4.9 (80 reviews)

4.9 80 reviews

Description :

The Shinybow SB-5669CKP is a professional 16x16 matrix routing switch. Supporting (16) HDMI Inputs and (16) HDMI Outputs & (16) HDBaseT™ Outputs with PoH. The SB-5669CKP is based on the HDBaseT™ standards and supports full resolution HDMI video with embedded HDCP, RS-232 and Bi-directional IR all over a single CAT6/6a/7 category cable. With a signal bandwidth of 340Mhz, there is no signal degradation. High definition digital signals can be selected and distributed to any of the (16) Inputs to any of the (32) Outputs simultaneously (channel outputs mirrored). The switcher is fully CEC, HDCP 1.3, HDMI1.4a certified with HDMI 4K2K@30Hz, DVI 1.0, 3D formats and a wide frequency range of 25MHz~340MHz. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5669CKP has 16x HDMI connector Inputs and 16x HDBaseT™ (PoH) & 16x HDMI Outputs, effectively making this a (16) In x (32) Out switcher (same signal on both outputs). Using the HDBaseT™ output remote transmitter, it will allow you to connect a source in a remote location. Likewise, the HDBaseT™ Output and our HDBaseT™ receiver, allows you to connect a display in a remote location. EDID management can be selected between (7) different modes. Control is provided via front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Call for pricing and availability

Our team can confirm lead time, configuration, and volume pricing for this product.

Call (216) 798-7530

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

Enables switching of (16) HDMI digital source devices to (16) HDMI devices and (16) HDBaseT™ Transmitter Outputs (PoH) to (32) total destinations
New IR Matrix Source Routing Control
HDBaseT™ specifications with Bi-Directional IR, RS-232, Multi audio format and HD video signals over single CATx (6/6a/7) category cable
HDMI digital video w/ embedded HDCP, DVI format and CEC/HDCP 2.0 compliant
Worldwide EDID control modes for HDMI full 4K2K HD Video resolutions
Wide frequency range of 25MHz ~ 340MHz. Supports HDMI 4K2K@30Hz, HDMI 1.4a
Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K(24/30Hz)
Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTVs and audio receivers or audio amplifiers
Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit
Digital audio support digital multi-channel audio: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
HDBaseT™ supports IR remotes and RS-232 signals over a single CATx (6/6a/7) category cable
Various User Interface Controls:
- Windows based GUI control via RS-232 port interface WIN2000/XP/WIN7-32/WIN7-64
- Front panel push buttons
- IR wireless remote controllers
- Ethernet switch control (via pc protocol commands)
- Third party RS-232 controller (via simple ASCII)
Supports (7) world wide control function keys: Full function front panel controls: ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
Supports EDID modes :
- a. Embedded EDID modes: FSS (Fast Speed Start) / H24-3D/ H24-3D-M/ H36-3D/ H36-3D-M/ 4K2K-3D / DVI-D 1920x1200-60Hz
- b. External modes : Learning mode (learning destination EDID link to source device)
Automatic scanning input & output status via LCM showout on front panel
Using the build-in booster, each HDMI Output port is capable of driving cable lengths of 1080p up to 98 ft (30M) & 4K2K up to 66 ft (20M)
Supports IR remotes and IR extenders for a distance of up to ~ 984 ft (300M) Maximum
Supports universal power adaptor AC100V~AC240V, 50/60Hz

Specifications

Type of HDMI Switcher	(16) HDMI Inputs to (16) HDMI & (16) HDBaseT™ Outputs Matrix Switcher
HDMI Supports	HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D, HDMI V1.4 formats
HDBaseT™ Support	HDMI digital signals, bi-directional IR, RS-232 and PoH over single CATx (6/6a/7) cable
HDCP/CEC Support	HDCP 1.3 Compliant, CEC Compliant
Video Bandwidth	Double Data Rates: 340Mhz
Digital Video Support	HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color
Inputs (HDMI)	(16) HDMI (HDMI or DVI digital source)
Outputs (HDMI)	(16) HDMI (to destination)
Booster (Each HDMI Output)	1080p up to ~98 feet (30M) & 4K2K up to ~66 feet (20M)
HDBaseT™ Output (PoE)	(16) HDBaseT™ Transmitter (PoE) via a single category cable using RJ-45 connectors
HDMI Digital Multi-Channel Audio Support	Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
HDBaseT™ Control	1. IR Control: (16) IR In (Sends IR signals to 16x rooms via a HDBaseT™ Transmitter) (16) IR Out (Links to receive IR signals from 16x rooms via a HDBaseT™ Extender) 2. RS-232 I/O Control: (16) RS-232 I/O (Controls 16x rooms with RS-232 via the switchers HDBaseT™ Extender Tx)
Switch Controls	1x Select & Function buttons on front panel (Data status via LCM panel show out) 1x IR Remote Controller (switch control), p/n: SW-HD69CK 16x IR Room Remote Controller (switch control), p/n: SW-HD69CK01~16 1x IR External port (switch control via 3.5mm OD Jack) 1x RS-232 series interface (switch control) 1x Ethernet series interface (switch control)
Source Status	Input status LEDs indicates presence of a live signal
(39) Function Control Keys	1. ALL, 2. OFF, 3. RECALL, 4. ENTER, 5. MEMORY, 6. LOCK, 7. EDID, 8. Destination 1 thru 16, 9. Source 1 thru 16
(7) EDID Management	Select Embedded EDID Modes: Mode1: Fast Speed Start®, Mode2: H24-3D, Mode3: H24-3D-M, Mode4: H36-3D, Mode5: H36-3D-M, Mode6: 4K2K-3D, PCM-2CH, Mode7: DVI-D 1920x1200
Learning Mode	1. Select LEARNING mode-1 : Learning single Destination EDID to Link Source 2. Select LEARNING mode-2 : Learning multiple Destination EDID to Link Source
Infrared Frequency	38Khz
IR External Distance	SB-100 (~984 feet / 300M maximum), SB-100C (~6.5 feet/2M)
HDBaseT™ Extender Distance	~328 feet / 100M maximum
HDMI I/O Connector	HDMI Type A - SMD 19pin female type
Temperature	Operating Temperature 32°F - 100°F (0°C - 32°C)
Dimensions (LxWxH)	17.32 x 11.81 x 6.93 in(442x300x176mm)
Rack Mount	4RU High 19 in Rack Mount #4U-440L (with rack mount ears)
Power Supply	AC 100~240 VAC 50/60Hz (120V/3A/360W; 220V/1.63A/360W)
Safety Approvals	CE, FCC, REACH
Product Weight	4.575 Kgs / 10.45 lb
