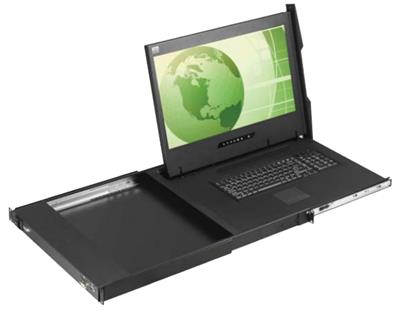

W119b Cyberview 1U 19" Widescreen Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Trackball

Name: W119b Cyberview 1U 19" Widescreen Rackmount Monitor Keyboard Drawer with combo USB and PS2 Interface Trackball
Brand: KVMSwitchTech
SKU: W119b
Price: 1272.00 USD
Availability: InStock
Rating: 4.9 (41 reviews)

4.9 41 reviews

$1,272.00 $1,600.00 Save 21% ($328)

Volume and Government pricing available - call (216) 798-7530 or request a quote.

Description :

W119b Cyberview Widescreen Rackmount LCD Keyboard is a combination of Keyboard, Video and touchpad or trackball mouse (KVM) in 1U drawer. This Widescreen Rackmount Monitor drawer is a cost effective solution and saves space for Rack environments. These wide screen format rack LCD units are used for a wide range of government, military, surveillance and commercial applications.

Item Number: #W119b

In stock. Ships fast

Estimated delivery: 3-6 business days

Request a Volume / GSA Quote

Quick Shipping

2-year warrantywith RMA support

Live expert help(216) 798-7530, M-F 9-5 ET

30-day returnsRMA support process

Secure checkout

PO/Net-30

Certified and compliant

REACH TAA Compliant

Product Features

1U Rackmount LCD Keyboard combo with 19" Widescreen LCD ( VGA and DVI-D inputs)
Combo USB and PS2 input interface with KVM cable
Multiple Keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Trackball keyboard
19" Widescreen Rackmount LCD with resolution up to 1440 x 900

Specifications

LCD	19" Wide Screen Samsung LCD
Environmental
Operation	0° to 50°C Degree
Storage	-5° to 60 °C Degree
Relative Humidity	5~90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
Max Resolution	1440 x 900
Brightness (cd/m²)	300
Color Support	16.7 M
Contrast Ratio(Typ.)	1000:1
Viewing Angle (H/V)	160° x 160°
Display Area (mm	408 x 255
Tr Response Time (ms)	1.3
LCD Panel MTBF (hrs)	50,000
Resolution	720 x 400, 70 Hz ; 640 x 480, 60/ 70/ 72/ 75 Hz; 800 x 600, 60/ 70/ 72/ 75 Hz; 1024 x 768, 60/ 70/ 75 Hz; 1152 x 864, 60/ 70/ 75 Hz; 1280 x 720, 60/ 70/ 75 Hz ; 1280 x 1024, 60/ 70/ 75 Hz; 1440 x 900, 60 Hz
Plug & Play DDC	EDID 1.3
Console Port (Combo)	DVI-D / DB-15 connector for VGA / keyboard / mouse ( Combo PS2 or USB)
Power Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption	Max. 48 Watt, Standby 5 Watt
Regulation Approval	FCC, CE
Dimensions
Product (WXDXH)	17.4 x 18.1 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	44lbs
Gross	57lbs

View user manual (PDF)
