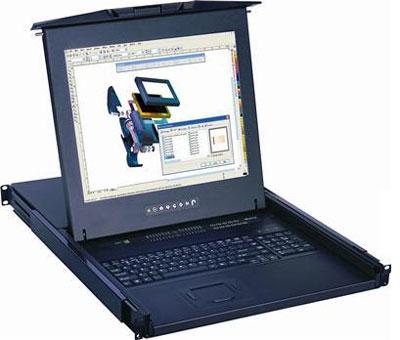

1U 19" Widescreen Rackmount Monitor Keyboard Drawer with integrated 8 Port USB KVM Switch Touchpad

( 98 Reviews )

$2100.00 $1659.00

Description :

1U 19" WideScreen Rackmount LCD Keyboard with integrated 8 port USB KVM Switch is a combination of Keyboard, video, touchpad or trackball mouse (KVM) and KVM Switch in 1U drawer. This Wide screen Rackmount Monitor drawer with KVM is a cost effective solution and saves space for Rack environments. These Wide screen format Rack LCD KVM Switch units are used for a wide range of government, military, surveillance and commercial applications.

Item Number: #WRKD-KVMU-19-8

Add to Cart

Product Features

1U 19” Widescreen Rackmount LCD Keyboard combo with KVM Switch
Combo USB and PS2 input interface with KVM cable
Multiple Keyboard language selections
Enhanced aesthetics with new molded front panel and two point lock
Touchpad or trackball keyboard option
Combo USB/PS2 and VGA input interface with KVM cables (CABLES NOT INCLUDED)
19" Widescreen Rackmount LCD with resolution up to 1440 x 900

Widescreen Rackmount LCD Keyboard with KVM Switch

Cascade KVM Switches to control up to 128 servers
High Video Quality - Up To 1440x900
Built-in microprocessor emulation for each port boots up process
Name servers up to 16 characters long
Scan Mode – Monitor servers at intervals 5 to 99 seconds
Password protection
Multi-platform support enables users to mix PCs, SUN Microsystems, IBMs, HPs, Compaq and Dell Servers

Integrated KVM Switch Options

PS2 KVM Switch, USB KVM Switch, Cat5e/Cat6 KVM Switch, IP KVM Switch and Matrix KVM Switch
Mix DVI-USB, VGA-USB, VGA-PS2 Servers
Rackmount LCD Keyboard with integrated KVM Switch offers Multi-Platform switching capability
Cost efficient Combo KVM integration
Secure remote user access (KVM Switch with TCP/IP Functionality)

Specifications

LCD	19" Wide Screen Samsung LCD
Environmental
Operation	0° to 50°C Degree
Storage	-5° to 60 °C Degree
Relative Humidity	5~90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random Vibration
Max Resolution	1440 x 900
Brightness (cd/m²)	300
Color Support	16.7 M
Contrast Ratio(Typ.)	1000:1
Viewing Angle (H/V)	160° x 160°
Display Area (mm	408 x 255
Tr Response Time (ms)	1.3
LCD Panel MTBF (hrs)	50,000
Resolution	720 x 400, 70 Hz ; 640 x 480, 60/ 70/ 72/ 75 Hz; 800 x 600, 60/ 70/ 72/ 75 Hz; 1024 x 768, 60/ 70/ 75 Hz; 1152 x 864, 60/ 70/ 75 Hz; 1280 x 720, 60/ 70/ 75 Hz ; 1280 x 1024, 60/ 70/ 75 Hz; 1440 x 900, 60 Hz
Plug & Play DDC	EDID 1.3
Console Port (Combo)	DB-15 connector for VGA / keyboard / mouse ( Combo PS2 or USB)
Power Input	Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption	Max. 48 Watt, Standby 5 Watt
Regulation Approval	FCC, CE, UL
Dimensions
Product (WXDXH)	17.4 x 22.8 x 1.75 inches
Packaging (WXDXH)	23.6 x 30.3 x 7.1 inches
Weight
Net	44lbs
Gross	57lbs
