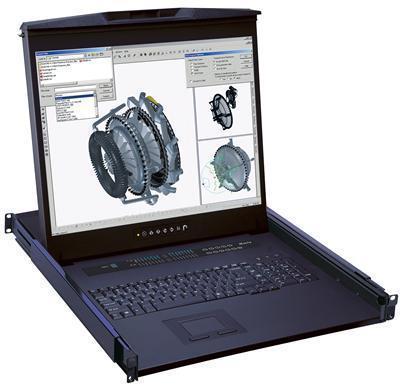

- 1U 19” Widescreen Rackmount LCD Keyboard combo with KVM switch
- PS2 input interface with KVM cable
- Multiple keyboard language selections
- Enhanced aesthetics with new molded front panel and two point lock
- Touchpad or trackball keyboard option
- PS2 and VGA input interface with KVM cables (CABLES NOT INCLUDED)
- 19" Widescreen Rackmount LCD with resolution up to 1440 x 900
Widescreen Rackmount LCD Keyboard with KVM Switch
- Cascade KVM Switches to control up to 128 servers
- High Video Quality - Up To 1440x900
- Built-in microprocessor emulation for each port boots up process
- Name servers up to 16 characters long
- Scan Mode – Monitor servers at intervals 5 to 99 seconds
- Password protection
- Multi-platform support enables users to mix PCs, SUN Microsystems, IBMs, HPs, Compaq and Dell Servers
Integrated KVM Switch Options
- PS2 KVM Switch, USB KVM Switch, Cat5e/Cat6 KVM Switch, IP KVM Switch and Matrix KVM Switch
- Mix DVI-USB, VGA-USB, VGA-PS2 Servers
- Rackmount LCD Keyboard with integrated KVM Switch offers Multi-Platform switching capability
- Cost efficient Combo KVM integration
- Secure remote user access (KVM Switch with TCP/IP Functionality)
Specifications
|
LCD
|
19" Wide Screen Samsung LCD
|
|
Environmental
|
|
Operation
|
0° to 50°C Degree
|
|
Storage
|
-5° to 60 °C Degree
|
|
Relative Humidity
|
5~90%, Non-condensing
|
|
Shock
|
10G Acceleration (11ms duration)
|
|
Vibration
|
5~500Hz 1G RMS random vibration
|
|
Max Resolution
|
1440 x 900
|
|
Brightness (cd/m²)
|
300
|
|
Color Support
|
16.7 M
|
|
Contrast Ratio(Typ.)
|
1000:1
|
|
Viewing Angle (H/V)
|
160° x 160°
|
|
Display Area (mm
|
408 x 255
|
|
Tr Response Time (ms)
|
1.3
|
|
LCD Panel MTBF (hrs)
|
50,000
|
|
Resolution
|
720 x 400, 70 Hz ; 640 x 480, 60/ 70/ 72/ 75 Hz; 800 x 600, 60/ 70/ 72/ 75 Hz; 1024 x 768, 60/ 70/ 75 Hz; 1152 x 864, 60/ 70/ 75 Hz;
1280 x 720, 60/ 70/ 75 Hz ; 1280 x 1024, 60/ 70/ 75 Hz; 1440 x 900, 60 Hz
|
|
Plug & Play DDC
|
EDID 1.3
|
|
Console Port (Combo)
|
DB-15 connector for VGA / keyboard / mouse ( Combo PS2 or USB)
|
|
Power Input
|
Auto-sensing 100 to 240VAC, 50 / 60Hz
|
|
Power Consumption
|
Max. 48 Watt, Standby 5 Watt
|
|
Regulation Approval
|
FCC, CE, UL
|
|
Dimensions
|
|
Product (WXDXH)
|
17.4 x 22.8 x 1.75 inches
|
|
Packaging (WXDXH)
|
23.6 x 30.3 x 7.1 inches
|
|
Weight
|
|
Net
|
44lbs
|
|
Gross
|
57lbs
|
|
