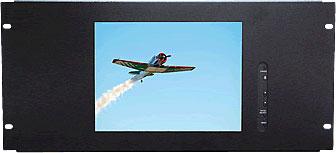

10.4" Rackmount LCD Monitor with VGA and DVI-D Interface

( 56 Reviews )

$1499.00 $1199.00

Description :

This 10.4" Rackmount LCD monitor with VGA and DVI-D video interface, KVMRMM-101 allows users to capture and Monitor data. These rackmount lcd drawers come with industrial grade LCD which provides users crisp and clear image. These LCDs are a cost effective solution and save you valuable Rack space. 10.4" Rackmount LCD units support simple plug and play functionality.

Add to Cart

Product Features

10.4” TFT LCD Display (1024 x 768 resolution) in 5U (8.75”) of Rack space.
ARGB (Analog RGB VGA 15PIN ) and DVI-D Signal inputs (Optional S-Video/Composite Video inputs)
Housed in rugged steel construction with a black powder coat finish
VGA Cable, AC/DC adapter and power cord included
Lexan™ Screen protection available (L) (Optional)

Specifications

Dimensions	19.0" (W) x 8.75" (H) x 2.40" (D).
Weight	10 lbs
Power	110 - 240 VAC, 50/60 Hz. 60 Watts max
On-Screen Controls	Brightness, Contrast, Horizontal & Vertical Position, Auto Adjust, OSD H & V Position, Input Select Color Temp., Reset.
Plug & Play	DDC1 and DDC2B
Temperature	Operating: 0C to 50C Storage: -20C to 60C
Humidity(Operating)	10 to 90% RH (max)
Input Signal (VGA)	RGB Analog Video, TTL H & V sync
Input Signal (Digital)	DVI-D Single Link (TDMS)
Input Connectors	Analog: 15 Pin mini D-Sub Digital: 24 Pin DVI-D
Colors Available	Black
Display Type	Active Matrix TFT LCD
Display area	10.4” Diagonal
Colors Displayed	262K Colors
Contrast Ratio	500:1 typ
Brightness	350 cd/m2 typ
Viewing Angle	Horizontal: 178 Vertical: 178
Response Time	40ms Typ
Resolution	VGA up to 1024 x 768
Horizontal Frequency	31.5 to 80KHz.
Vertical Frequency	56 to 75 Hz.
Screen Protection(Optional)	Lexan™

View User Manual

Sam Smith - General Dynamics –

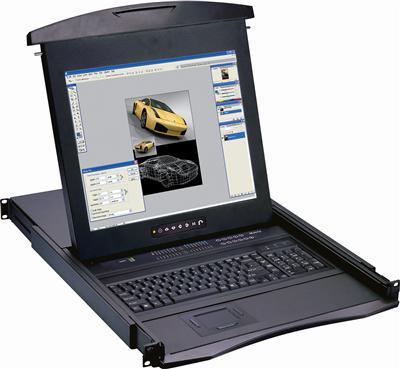

We were looking for a 1U 19" Rackmount LCD Keyboard console for our Flight Simulation System. KVMSwitchTech promptly responded to all our questions. We purchased several NRKD-KVM-19 Rackmount Console units from them and are very happy with the performance. Keep up the good work.

Melvin Parker - L3 Communications –

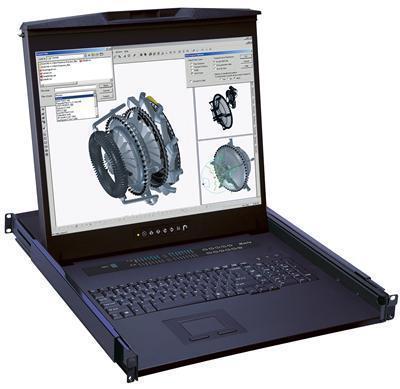

KVMSwitchTech helped us with a 1080p Rackmount Console with integrated 8 Port USB KVM Switch for our CNC Machines. The product works great and the staff is very friendly. I would recommend this Company.

James Johnson- Lockheed Martin –

Knowledgeable, experienced and courteous staff. We needed Fiber Optic Extenders with EMI shielding to avoid interference in signal transfers. KVMSwitchTech worked with us to design a DVI Fiber Optic Extender customized for our application. Thanks for all your help.

Angela Russo - Panasonic –

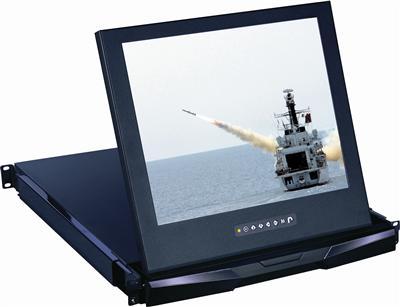

Rack LCDs for one of our newer locations were required for data monitoring. The light weight and short depth design of the Rackmount LCD Console was exactly what we were looking for. In addition, the product's streamlined and durable construction ensures its longevity and reliability in our environment. These guys are pros and know what they are doing.
