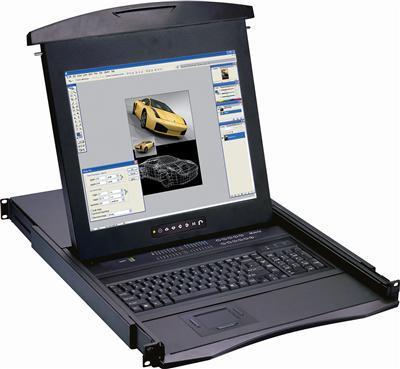

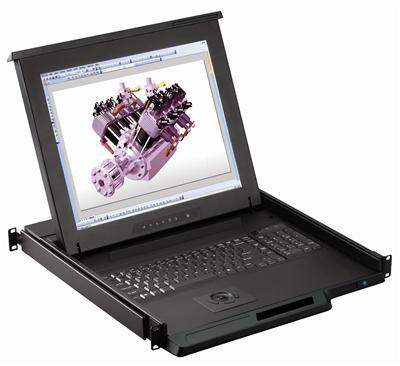

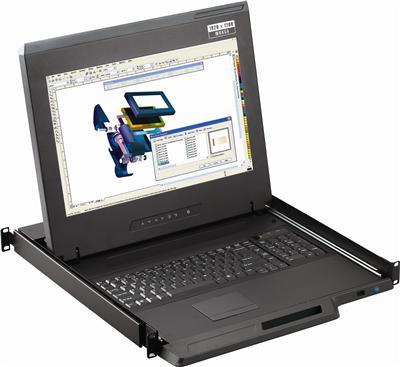

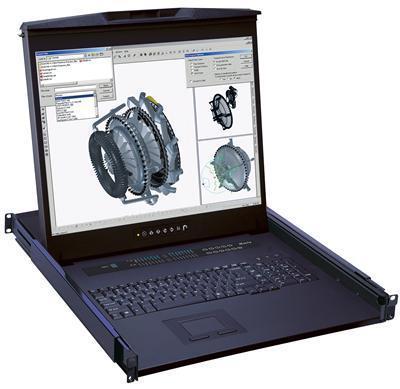

A rackmount KVM drawer is a 1U slide-out console: LCD, keyboard, and pointing device in one rack unit, with or without an integrated KVM switch. KVMSwitchTech stocks 17" and 19" drawers, short-depth chassis, combo USB/PS/2, HDMI/DVI/VGA/DisplayPort, touchpad or trackball. Call (216) 798-7530 for port count and rail depth.
A plain console drawer is LCD + keyboard + pointing device for one server or an external KVM. A rackmount KVM drawer with an integrated 8, 16, or 32-port switch lets one 1U console drive many servers without a second chassis. Buy the plain drawer when the rack already has a KVM. Buy the integrated switch when the console is the only local access point.
17" drawers fit most 19" racks and keep rail travel shorter. 19" panels give more desktop for BIOS and KVM OSD work. Stay on 17" or 19" unless the SKU is a larger chassis in this grid.
Match the drawer video input to the server or KVM output. VGA and DVI remain common on older gear. HDMI and DisplayPort cover current servers. Do not assume 4K60; live panels are 4K30-class unless the SKU sheet lists 3840×2160 @ 60 Hz (K117e via DisplayPort).
Browse products
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
In stock
Short-depth drawers belong in wall-mount and shallow cabinets. Standard-depth drawers use full rear rails in a four-post rack. Confirm rail kit length against cabinet depth before order. See short depth LCD keyboard units when rear clearance is tight.
USB and PS/2 integrated switches live in the same 1U as the LCD. Cat5 and IP options push the switch farther from the console. Start with 1U KVM drawer with USB KVM switch or 1U KVM drawer with PS2 KVM switch when servers sit in the same rack.
Touchpad is the default for gloved and ungloved use. Trackball stays put when the drawer is half-open in a tight aisle. Combo USB and PS/2 keyboards cover mixed server generations.
| Need | Choose |
|---|---|
| Single-server console | Plain KVM drawer |
| Multi-server, local | Drawer with USB/PS/2/Cat5 KVM |
| Multi-server, remote | Drawer with IP KVM |
| Shallow rack | Short-depth drawer |
Austin Hughes CyberView and Raloy-class drawers in this catalog are 1U commercial units. Call out MIL-STD-810H methods, CAC reader type, and MS3470W8-33P pinout on quote. Do not assume commercial CyberView ships 810H-tested from stock.
A 1U rack console combining an LCD, keyboard, and pointing device, optionally with an integrated KVM switch.
Only if one console must control multiple servers. Otherwise a plain drawer is enough.
17" and 19" LCDs with combo USB and PS/2, VGA, DVI, HDMI, or DisplayPort, and touchpad or trackball.
Choose the short-depth drawer for wall-mount and shallow enclosures.
Choosing a console drawer? Our engineers match screen size, pointing device, and KVM option to your rack. Call (216) 798-7530 for free system design help.
